Unloading and sorting

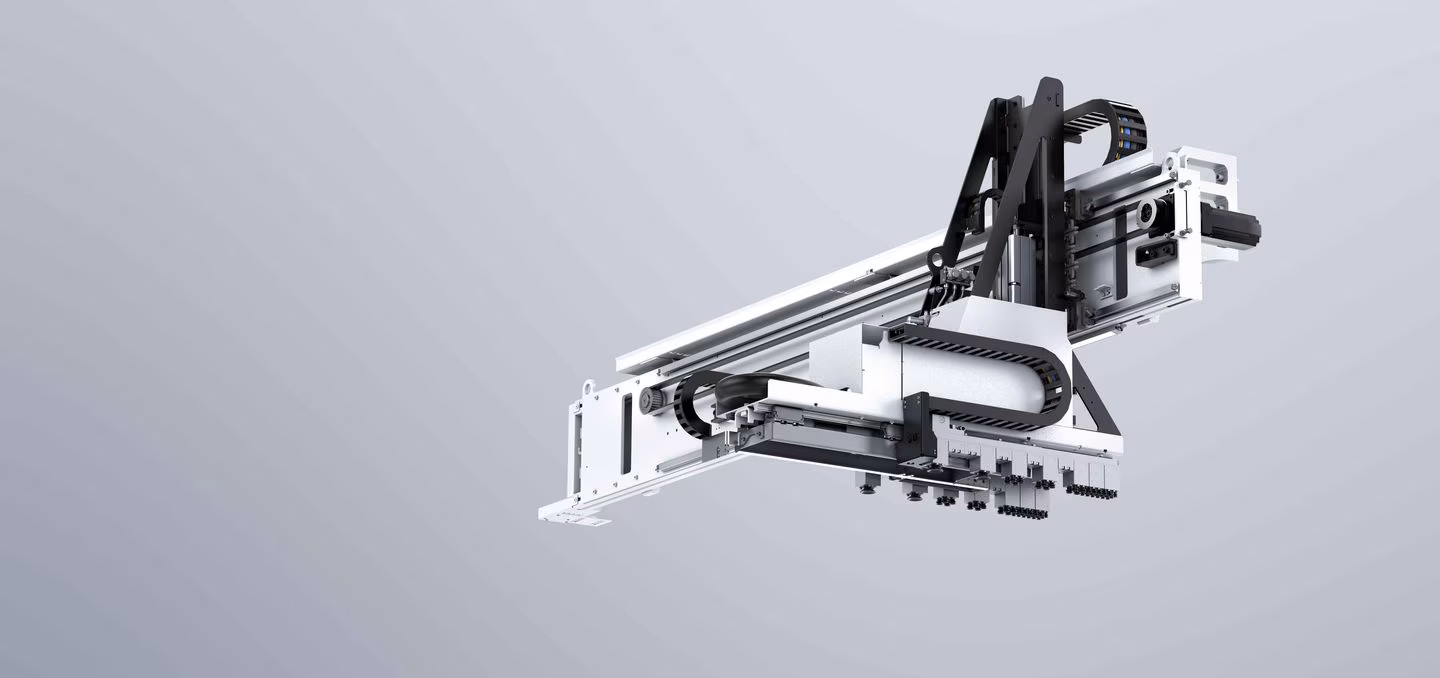

The SortMaster Compact for the TruPunch 1000 and TruMatic 1000 fiber is small and barely needs any space outside of the machine. It is therefore also ideally suited as an entry-level solution to automation. Individually controllable suction cups grip and unload nearly every part. The SortMaster Compact sorts and stacks finished parts onto pallets. Depending on axis combination, the pallet will either be partially or completely loaded. This enables direct onward transport to downstream processes.
Reliably unloads parts
The suction cups can be controlled individually – an advantage especially for small parts.
Barely any space requirements
The automation is integrated into the machine; the pallet cart is located within the light barriers.
Sorted onto the pallet
The parts are directly ready for further processing
Works reliably
A scanner detects whether a part has been picked up and independently begins the next attempt.
High part quality
Suction cup technology and coordinated parts handling prevent scratches
