The deburring machine can be used for flexible edge rounding, as well as for deburring laser parts or for processing punched parts.

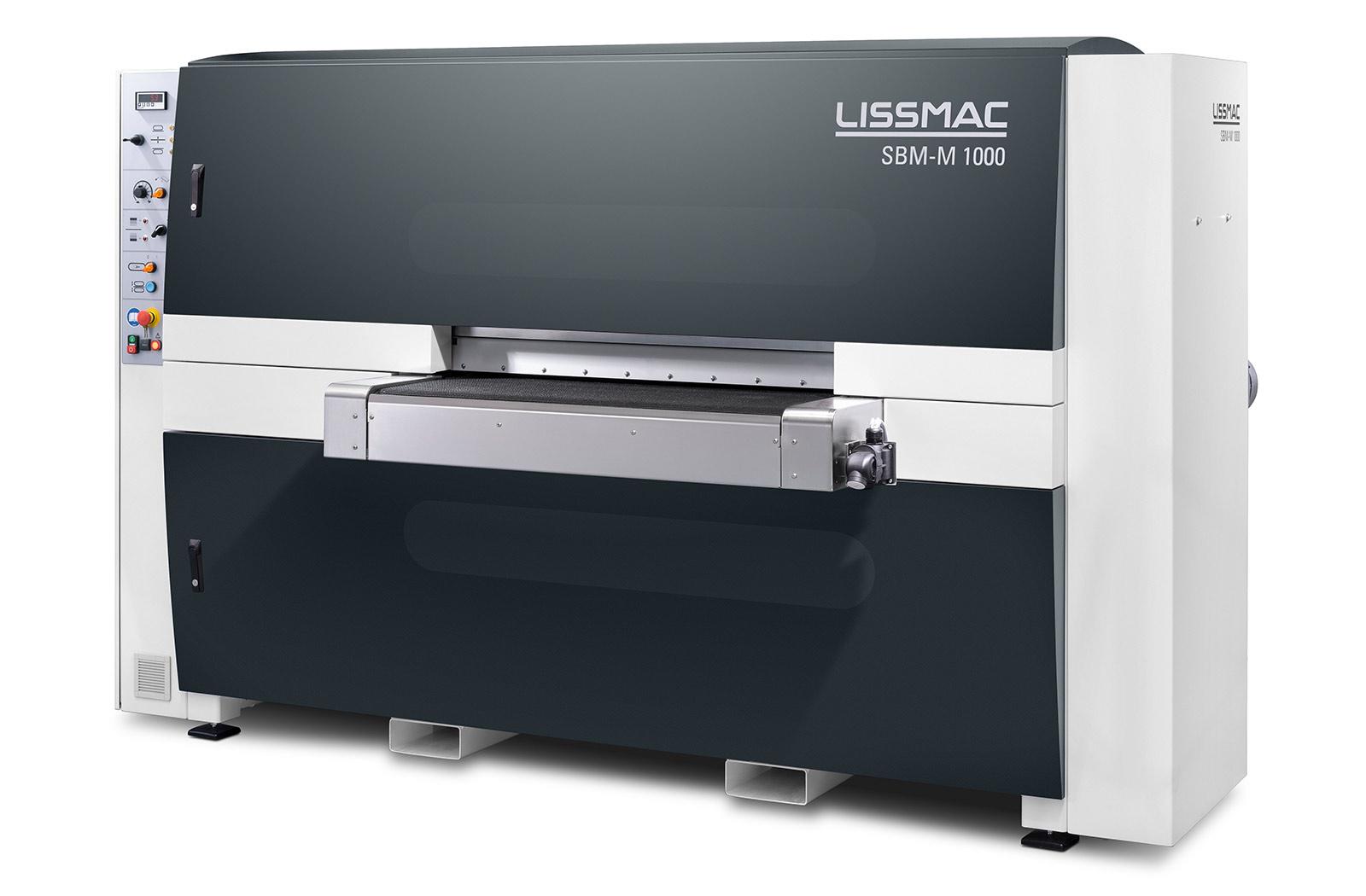

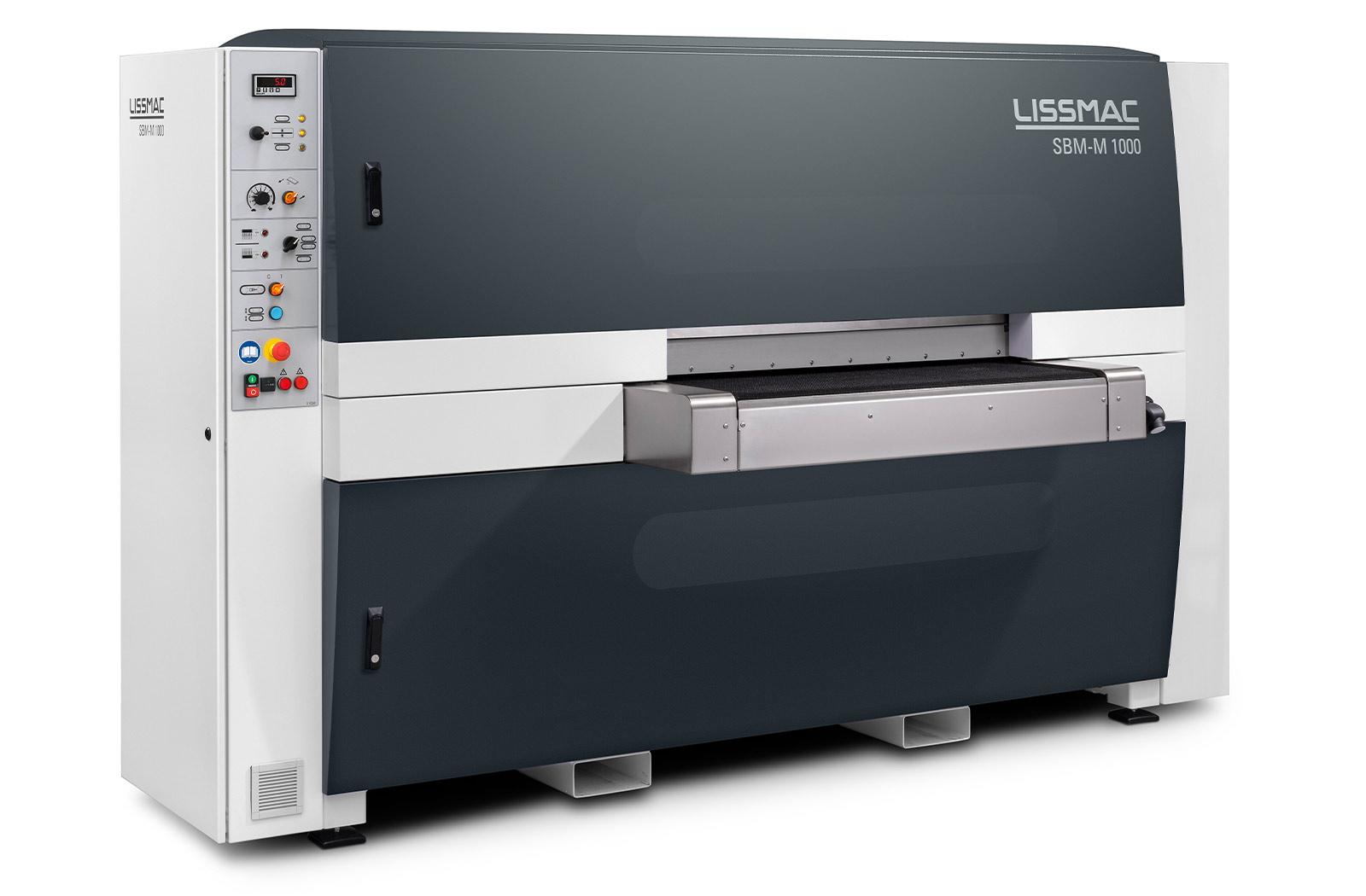

The SBM-M S2 grinding machine was developed for processing sheet metal and laser parts on both sides. Edge rounding of inner and outer contours on both sides in one operation ensures process efficiency. Machining on both sides simultaneously can save up to 60% in time.
The deburring machine can be used for flexible edge rounding as well as for deburring laser and punched parts. The machine deburrs the sheet metal parts to achieve the highest possible quality for further processing or finishing. Deburring of stainless steel, steel and aluminum can be carried out. Non-ferrous metals can also be processed. In addition, the SBM-M S2 from LISSMAC is suitable for processing foiled sheet metal.
Up to 50 mm material thickness
Deburring and edge rounding of sheet and plate up to 50 mm material thickness
No need to turn sheets over
No need to turn sheets over and running them through the machine again
Up to 60% work time savings
Up to 60 % work time savings compared to one-side processing grinding machines

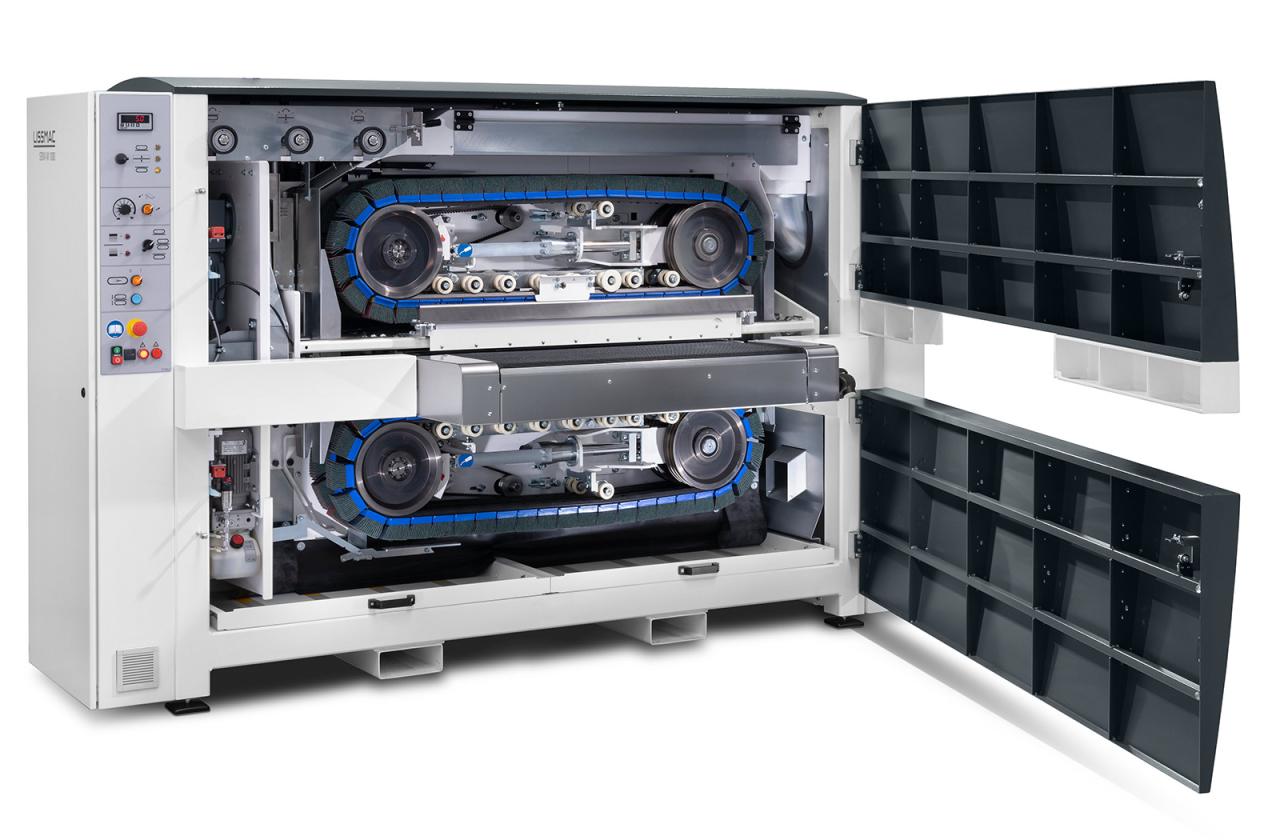

Cross-machining principle
The cross-machining principle guarantees uniform tool utilisation over the entire working width.
Protective foil
Protective foil on the sheets is not damaged during machining
Simple, intuitive operation
Each tool unit can be separately electrically operated and adjusted

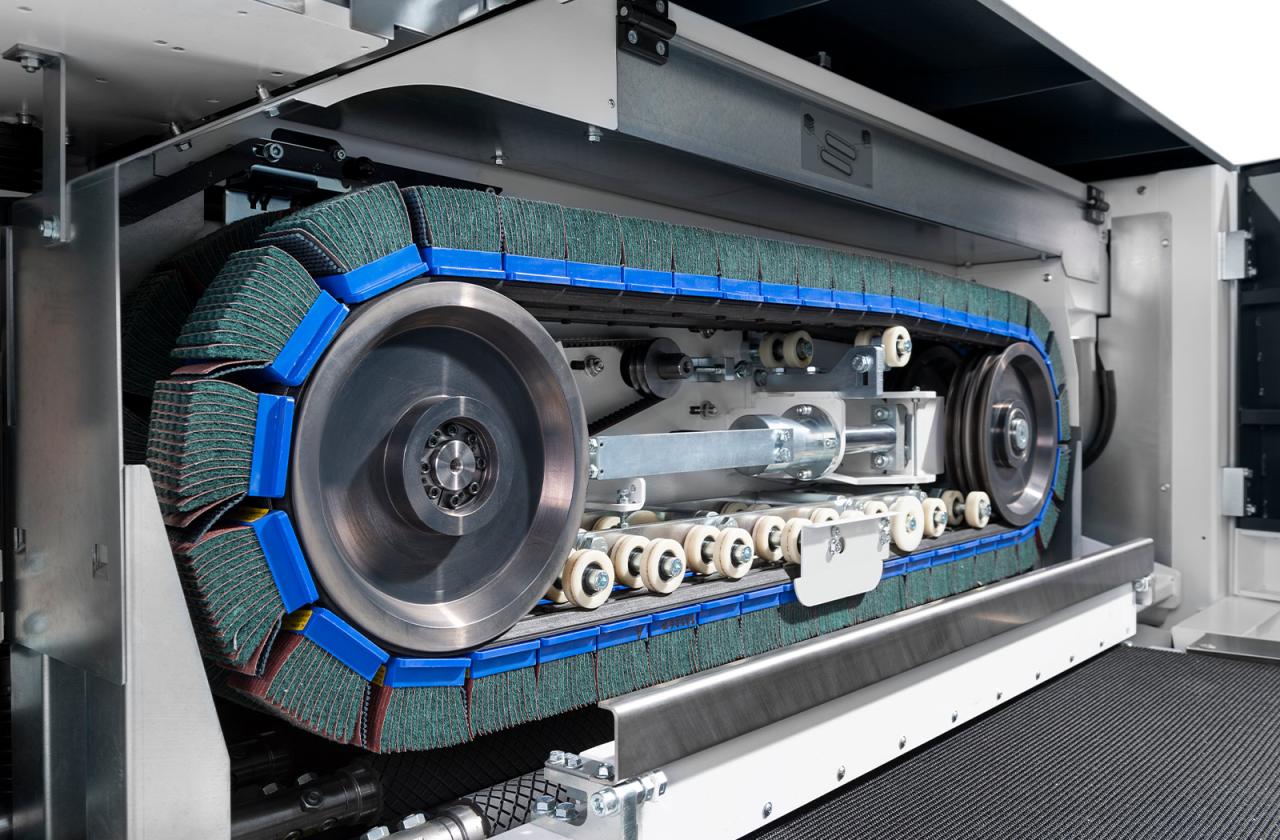

Hydraulic belt tension
Fast tool change within only a few minutes
Smaller footprint
Modular and compact in modern machine design
Improved work environment
Reduction of dust, dirt and noise
Optionally available
Conveyor Technology; Handling Systems, Automation; Custom Solutions

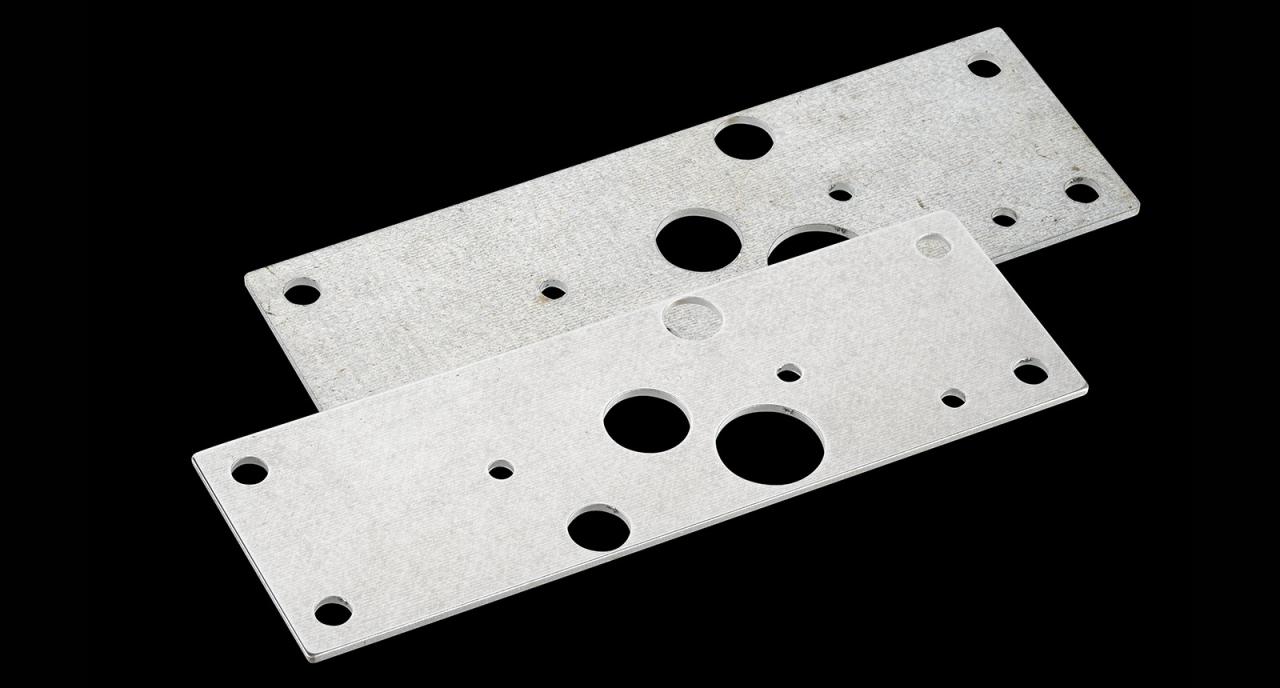

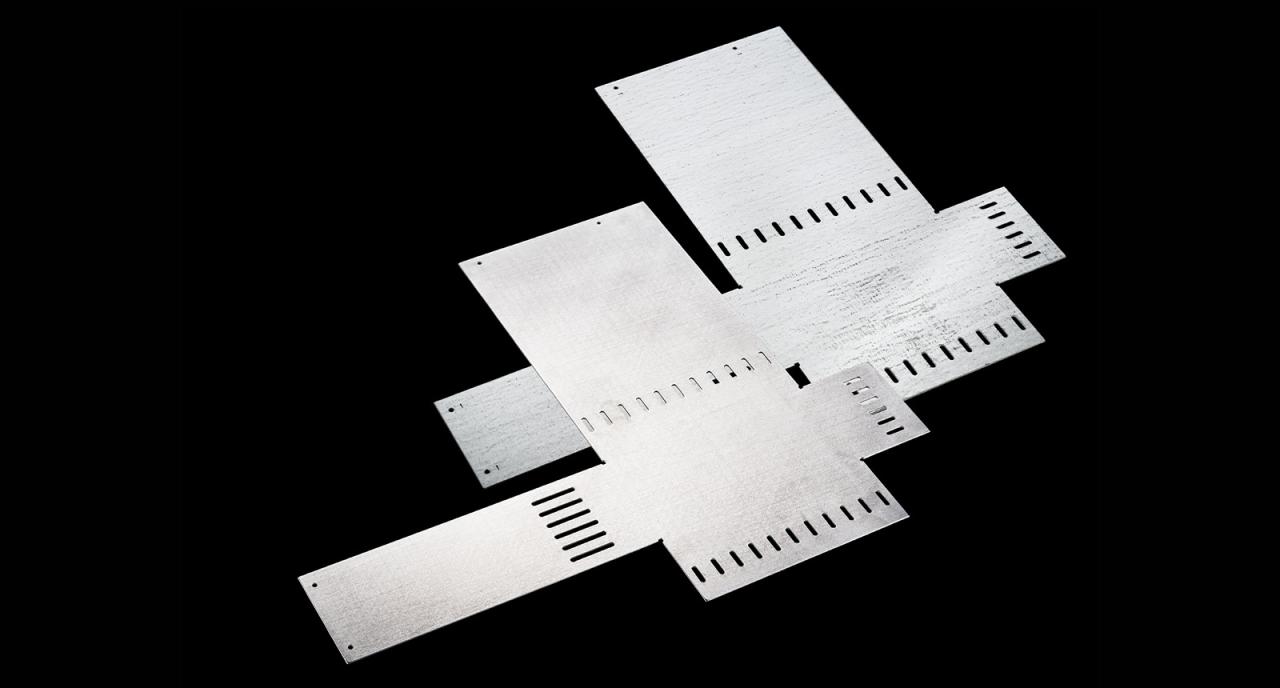

Interior and exterior contours
Simultaneous edge rounding of interior and exterior contours.
Highest quality
Highest quality during subsequent processing or finishing.
