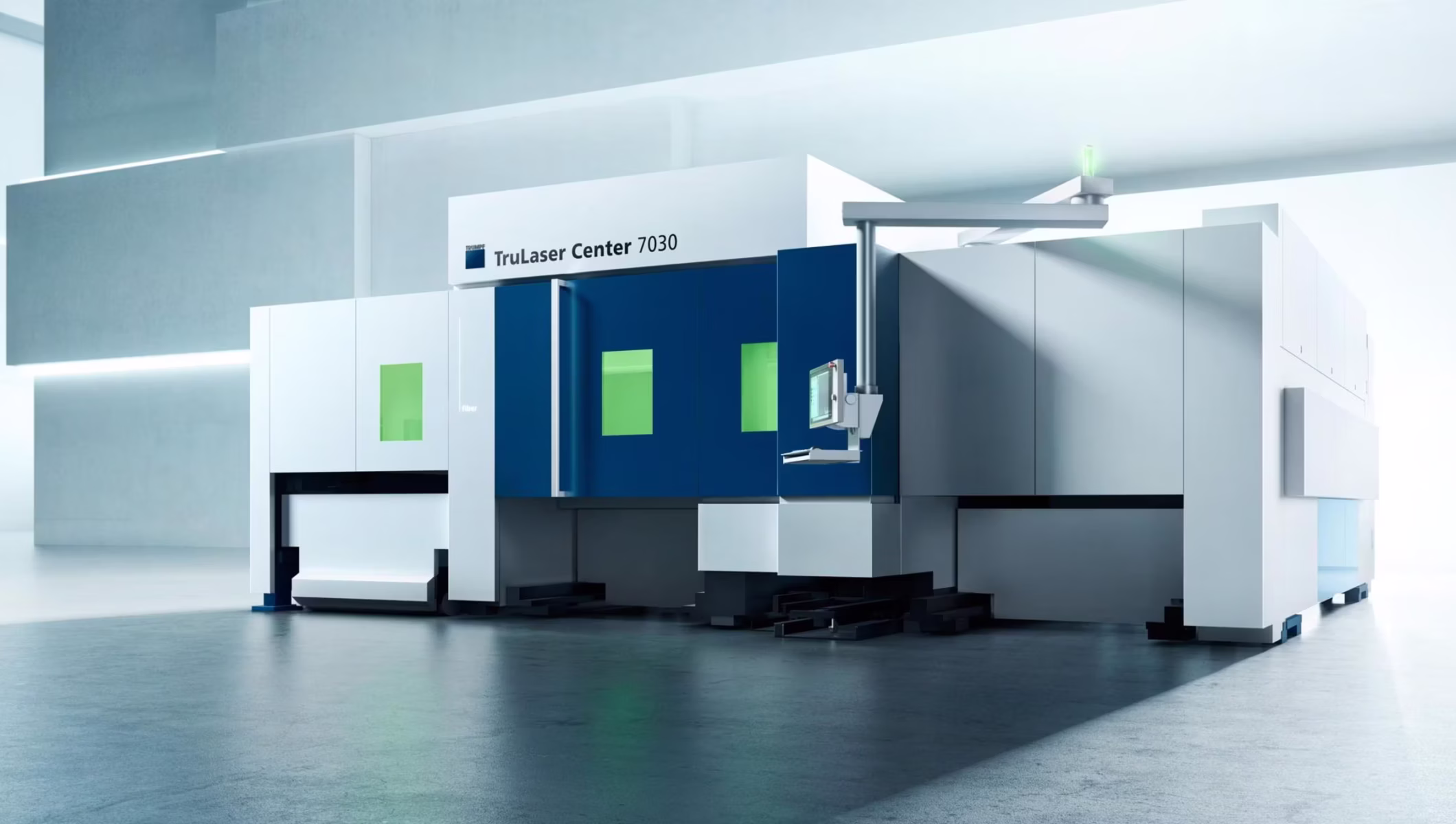

TruLaser Center 7030

TruLaser Center 7030

The Pro – the compact all-in-one laser system

Be om et tilbud

Fully automated from programming to sorting – for maximum efficiency and minimal part costs

The TruLaser Center 7030 integrates all laser cutting processes into a single machine for the first time. We scrutinized and redesigned all components and integrated them in a single machine. As a result, you get the optimal profitability out of your laser machining process.

Keep an eye on everything

Vision Equipment gives you complete transparency in the machine interior.

Intelligent cutting

The SmartGate prevents the tilting and unwanted welding of parts.

Quick and reliable

Additional axes, SmartGate, brush tables and SmartLift ensure pioneering productivity and uncompromising reliability

Unloading in record time

The SortMaster Speed removes and stacks large and highly delicate components at lightning speed.

Easy programming

TruTops Boost automatically generates a suggestion for the cutting, removal, sorting, and depositing of parts.

Technical Data sheet

Receive the technical data of all product versions as a PDF.

Request Technical Data sheet

Thin mild steel part

Your TruLaser Center 7030 fiber cuts extremely quickly, particularly in thin sheet.

Cutting of all common materials

The design of the TruFiber enables processing of non-ferrous metals with nitrogen – without worrying about back reflections.

Automated part removal

The versatile unloading system SortMaster Speed removes and stacks large and highly delicate components extremely fast. Even parts with a manufacturing process that is difficult to automate can be transported quickly due to the small suction cup.

Perfected part separation

No more tilting or getting stuck: With SmartLift and SortMaster Speed, you can process and remove even complex geometries reliably and fully automatically.

Reliable parts handling

Parts that until now could only be processed reliably using microjoints can now be cut and removed securely using the TruLaser Center 7030. This opens up entirely new possibilities for the processing of very small parts.

Internal reinforcement

Different geometries and sheet thicknesses can be manufactured with the TruLaser Center 7030, both with process reliability and to an excellent quality standard. This sample part has an interior reinforcement for welding housings made of steel sheet with a thickness of just 1 mm.

Stiffening plate

This 1.5 mm thick steel sheet part has a stiffening plate for cross member units and is part of the TruLaser Center 7030 clamping unit.

Locking mechanism

This sample part made of steel sheet has a thickness of 12 mm and locks the tilt mechanism of the TruLaser Center 7030.

TruTops Boost

Construct and program your laser, punching, and combined punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution.
Se produktet

Smart View for machine tools - Connect the machine and reap the rewards

Smart View is now available to you free of charge when you purchase your new machine. Smart View automatically provides you with relevant operating data for your machine tools.
Se produktet

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part.
Se produktet

SmartGate

The SmartGate, along with the brush tables, prevent the tilting and unwanted welding of parts. The intelligent support moves with the cutting head and provides support for your parts during cutting. The ejector cylinder automatically finds the best point for every part geometry to push the part out through the scrap skeleton and discharge it securely.

SmartLift and SortMaster Speed

The pins of the SmartLift, which can be positioned with flexibility, press the cut parts against the suction plate of the SortMaster Speed from below. At the same time, this fixes the part from above. Fixed in this way, the part is taken out of the scrap skeleton by a synchronous lift motion. This means even delicate parts are held securely and do not tilt in the kerf.

Hybrid machine concept

The movement of the sheet is superimposed by a highly dynamic additional axis on the cutting head. This means that you can cut corners and complex contours at high speeds. This strong combination means that you get the most out of the high feed rates of the solid-state laser.

SmartGate

Within seconds, the SmartGate removes small parts into up to eight containers. Slugs and scrap fall into a slag cart. Your key for maximum throughput: The removal of residual material causes minimal interruption to the cutting process – a result of the intelligent control and sensor system of the SmartGate.

SortMaster Speed

The SortMaster Speed stacks parts at lightning speed and with perfect order on up to eight pallets. As soon as the SortMaster Speed takes the part, the machine continues cutting. The part is taken to its deposit position parallel to production. Interruption to the machining process is minimal.

LoadMaster Center

The LoadMaster Center places the unprocessed sheet on the brush table in the clamping unit. Powerful peeler technologies reliably separate the sheet metal from the stack.

Programming

The TruTops Boost programming system automatically generates a suggestion for the cutting, removal, sorting, and depositing of parts. In doing so, it even takes physical conditions into consideration. For example, how the part can best be pushed out of the scrap skeleton to eliminate any chance of it tipping.

SortMaster Box Linear

A sorting flap reliably separates finished parts from scrap. The SortMaster Box Linear sorting unit distributes small parts into up to eight containers parallel to production. The containers are assigned intelligently by the software program.

Processing cell

The processing cell loads and unloads independently and announces when the operator is needed. Because of this, the operator can plan his/her work at the machine better. Waiting times, manual sorting, and rework are a thing of the past. The Touchpoint user interface also enables an intuitive dialog with the machine.

Automatic nozzle changer

Through program control, the automatic nozzle changer inserts the correct nozzle. The nozzle changer is located in the machine cabinet during processing, which makes it possible to set up parallel to production.

Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.

Vision Equipment

Complete transparency in the machine interior? This is possible with Vision Equipment with precisely positioned cameras and optimally coordinated lighting. With Smart View for machine tools, you can follow your camera live streams in real time and keep an eye on the interior of your TruLaser Center 7030 at all times.

Large store, short distances

Connect your TruLaser Center 7030 to all common storage systems, such as the TruStore store from TRUMPF or large-scale storage systems from STOPA. The modular stores can always be customized and extended to fit your needs.
Vis Produkt

Side storage connection for unprocessed material and finished parts

Unprocessed material enters the machine from the side. While the stacked finished parts return into the store on pallets, small parts in boxes are removed from the front of the machine. The tandem relay gives you direct access to the next storage pallet and reduces waiting times.
Vis Produkt

Side storage connection for raw material and finished parts with flexible access to parts

The machine is supplied with raw material from the store from the side. Handle finished parts with flexibility, for example you can remove them directly from the machine during the day, and place them back in the store at night. You can also remove parts directly from the unloading cart, or use a moving floor or storage palette compatible with forklift trucks – the solutions are numerous and always suit your requirements.
Vis Produkt

Er du klar til å jobbe med

TruLaser Center 7030?

Kontakt oss i dag

Relaterte produkter

TruLaser 5000 Fiber

The pro - dynamic, autonomous ultraproductive

Be om et tilbud
Se maskin

, ,

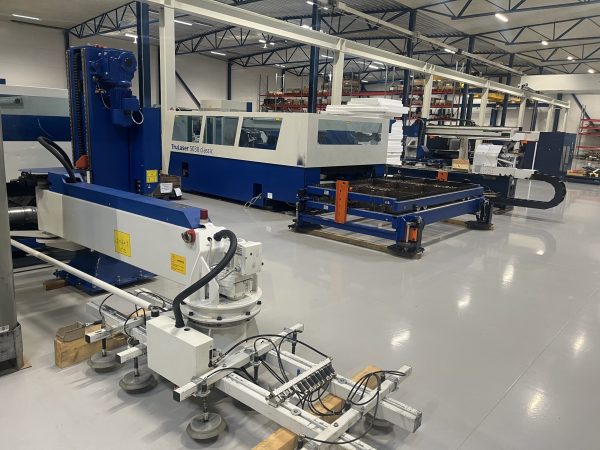

Trumpf Loadmaster

Safe loading for all 2D laser machines. A reliable process for separating sheet metal increases productivity and reduces rejects.

Be om et tilbud
Se maskin

,

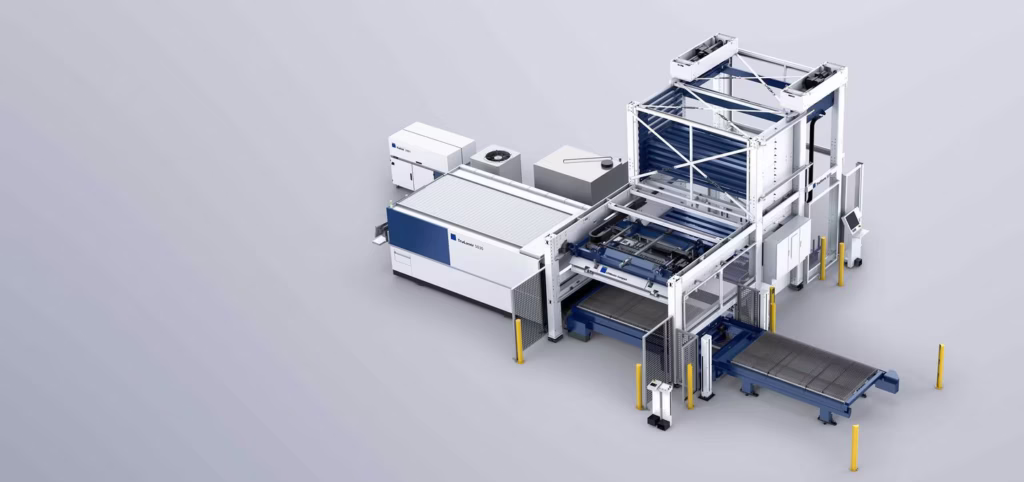

Third Pallet Station
