TruMark Station 5000

TruMark Station 5000

Flexible all-round solution for convenient

Be om et tilbud

Adaptable and ergonomic

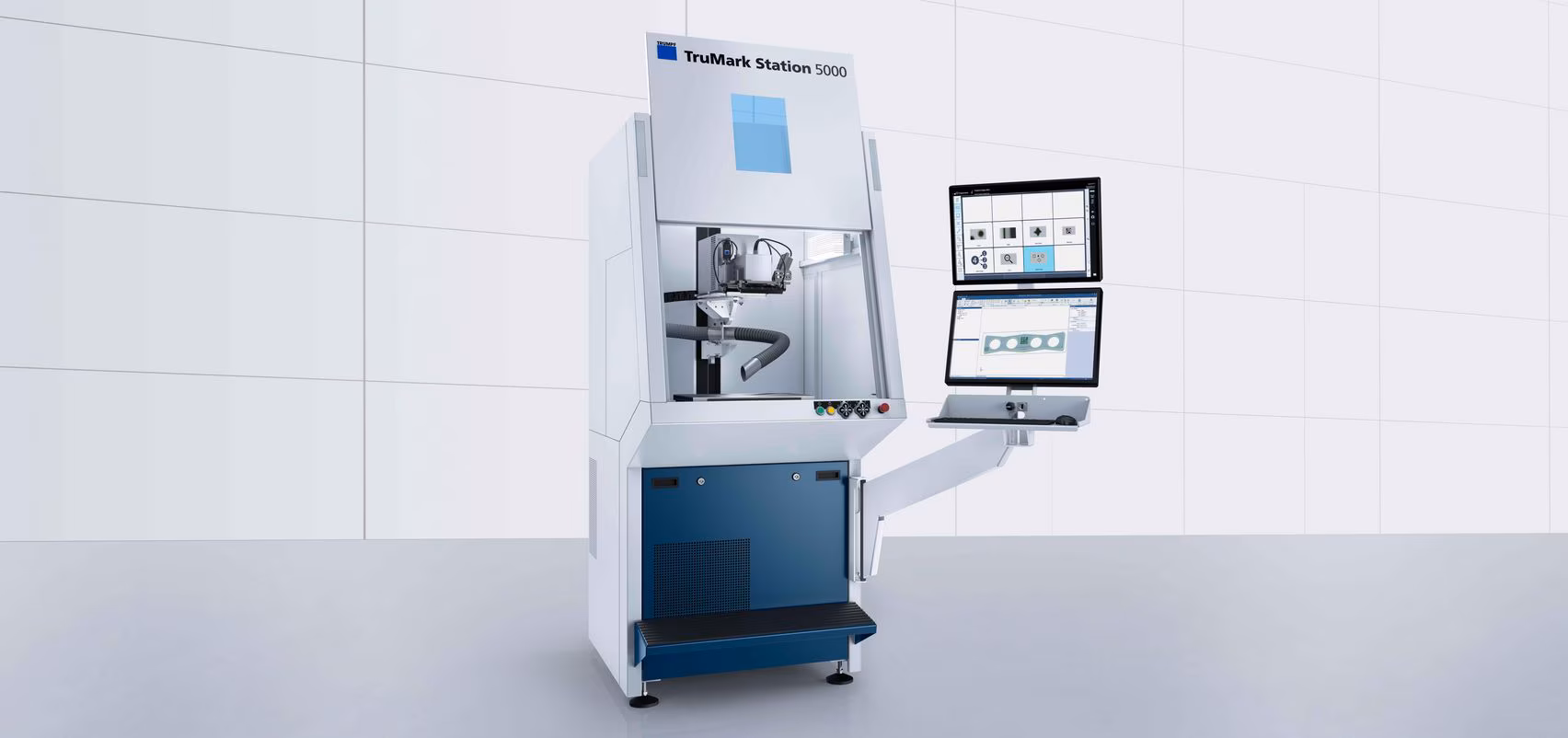

Due to its intelligent, ergonomic design, the compact TruMark Station 5000 can be used as both a standing and a seated work station. We equip the machine with linear axes in the X and Y direction and rotary axes with various clamping systems, according to your requirements. The marking station offers the possibility of workpiece flow through transfer for integration in a flow line. The openings in the side of the housing offer excellent flexibility so that the TruMark Station 5000 can be expanded in line with your requirements. Its flexibility and its suitability for diverse application scenarios make the TruMark Station 5000 the true all-around solution of the TRUMPF marking systems.

Outstanding compatibility

The TruMark Station 5000 can be combined with all TRUMPF marking lasers.

Extremely safe

Any emissions are immediately channeled away by the exhaust system that is integrated as standard.

Open for everything

Use the option of workpiece flow for integration in your production line.

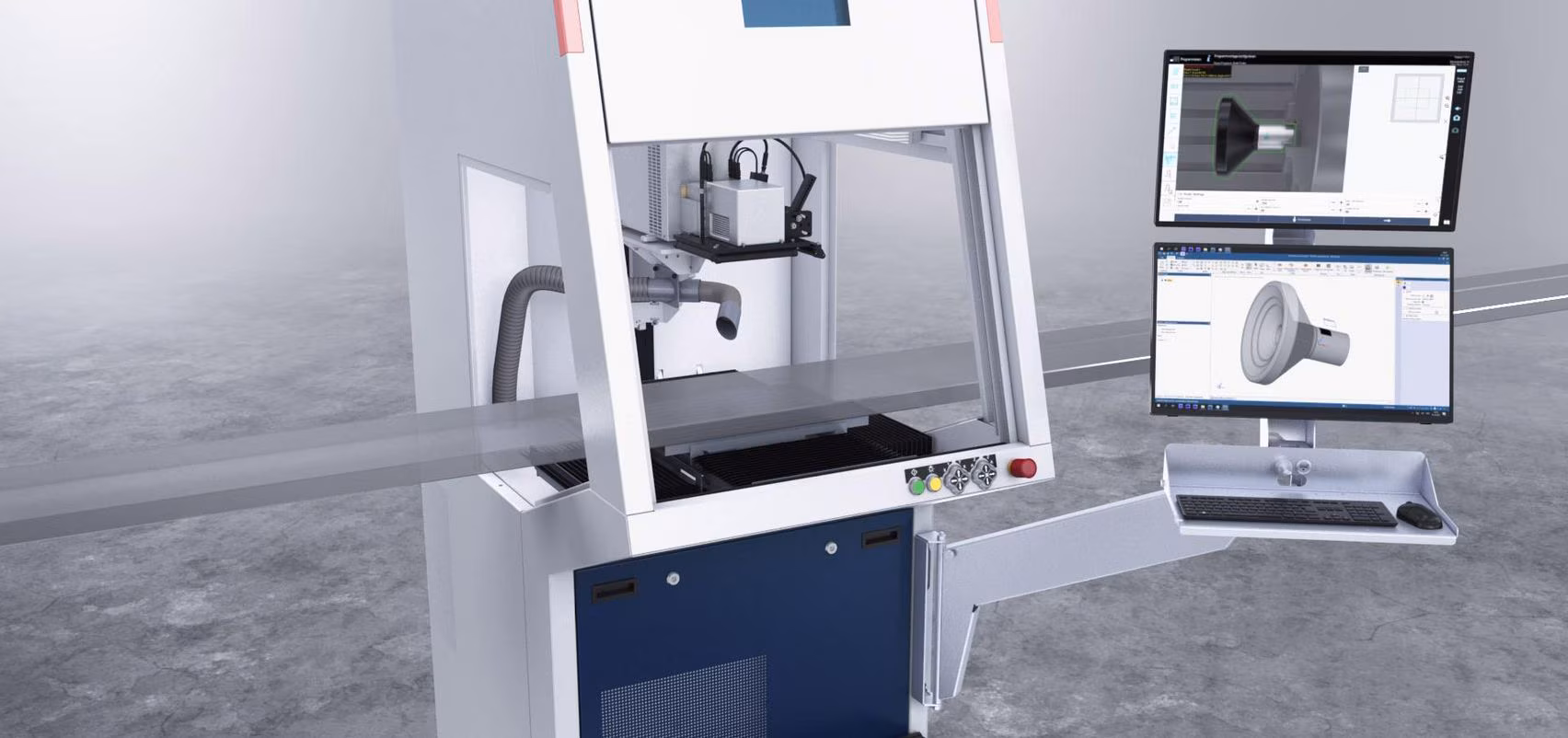

Can be used universally

The TruMark Station 5000 gives you freedom when choosing the installation location, thanks to its compact design. For integration into an assembly line, it gives you the option of transferring workpieces lengthwise through the lateral openings in the housing.

Multiple focusing lenses

A large number of lasers with various focusing lenses are available for the TruMark Station 5000. These are optimally tailored to the marking lasers of the TruMark Series, which offers focusing lenses up to a focal length of 16.5 in. for the TruMark Station 5000.

Technical Data sheet

Receive the technical data of all product versions as a PDF.

Request Technical Data sheet

Engraving

Watch maker Junghans engraves the watch backs of the Meister S Chronoscope Platinum Edition 160, limited to 12 watches, in a TruMark Station 7000 equipped with a TruMicro Mark 2030.

Laser marking in medical technology

With innovative cochlear implants and audio processors, MED-EL helps restore hearing for individuals with hearing loss. The small components, made of plastic and metal, are inscribed with resistant markings and machine-readable codes.

Annealing

Local heat input is used to discolor the workpiece surface. The annealing color changes depending on the material and the energy input. The surface stays smooth, which means that dirt cannot be deposited.

Discoloration

If the material and laser wavelength are optimally matched, the dye molecules in the material can be deliberately discolored or faded. The surface remains smooth.

Structuring

The laser can be used to structure surfaces for a specific function. If the surface is structured with tiny melt elevations, significantly higher adhesion effects can be achieved with the same material properties. If interlocking components are structured after the addition of micro-depressions, the running characteristics improve significantly with the same quantity of lubricant.

Laser cleaning

Surfaces are easy and quick to clean with the laser. Rust, oil, or phosphate layers can be gently removed in preparation for subsequent processes without damaging the underlying material.

Ablation

Ablation partially removes thin top layers of multi-layer plastics which are applied to the basic material and have very different colors. This process can be used for the "day and night design", for example, which is used in the automotive and other industries.

Foaming

During foaming, the laser heats the plastic to cause a short melting process. During the subsequent cooling process, small gas bubbles become trapped and diffuse the light that falls on them and is reflected. This type of laser marking produces a raised marking.

TruTops Mark 3D

Our TruTops Mark 3D marking software is ideal due to its user-friendly operation and significantly shorter process times.
Se produktet
The TruMark Station 5000 can be combined with all TRUMPF marking lasers and offers the right solution for any application.

TruMark fiber laser

Our all-rounders for marking and surface processing
View Product

TruMark 3330

All-around solution for materials and applications
View Product

TruMark 6030

Marking with even more reliability and performance
View Product

VisionLine image processing

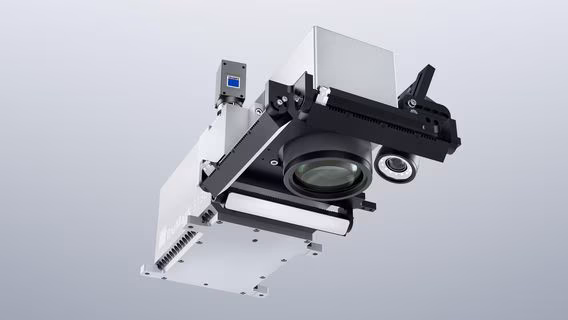

Increase your process reliability with VisionLine, TRUMPF's image processing solution. VisionLine detects the position of the component and ensures that marking takes place in the correct location. It is also possible to read out and check the marked code. The modular structure opens up numerous options. Whether the camera looks through the scanner lens, is laterally installed or whether the machine uses one or two cameras – anything is possible.

Rotary axes

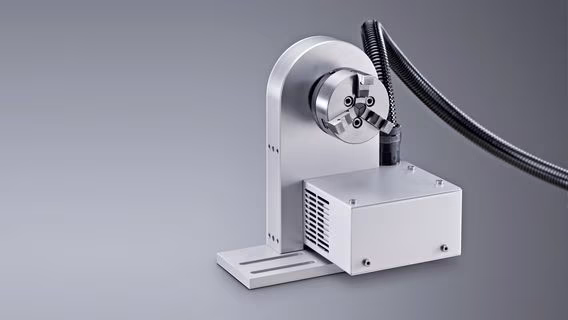

You can implement high-quality markings even on cylindrical workpieces with the help of the optional rotary axes. A rotary axis with step motor enables circumference marking on components with a weight of max. 5.5 lbs. (diameter of the hand-operated chuck: 2.56 in.). Alternatively, a rotary axis that enables circumference marking of components with max. 44 lbs. weight is available (diameter of hand-operated chuck: 6 in.).

Remote Services

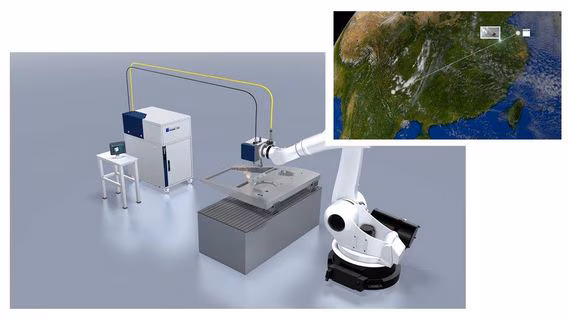

In the event of a fault, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the fault can be remedied directly in this way, or the configuration of the laser can be modified in a way that permits you to continue manufacturing until the spare part arrives.

Jog mode of the axes

Integrate the jog mode option in your TruMark Station 5000 to position the movements of the A, X, Y, and Z axes using the arrow keys on the control panel of the TruMark Station instead of with the operating program. This means that the component can be correctly positioned even if you do not have software access.

X axis/X-Y axis for TruMark Station 5000

A guide carriage installed on the machine frame and operated by a program-controlled drive enables precise positioning of your components up to a maximum weight of 55 lbs. The traverse path is 12 in., the repetition accuracy is ±0.0006 in., the traverse speed is 1181 in/min., and the positioning accuracy is ±0.002 in.

Swivel mechanism 90°

The swivel mechanism with scale can be freely adjusted manually and enables processing of the entire marking field width for the standard focusing lens (f = 163 mm). A clamping lever can be used to lock the swivel mechanism into place.

Integrated exhaust system of the TruMark Station 5000

The exhaust system for particle and smoke emissions is integrated in the machine frame of the TruMark Station 5000 and connected to the work area via a PU hose. The integration in the machine interior does not make the footprint of the marking work station any bigger. The combined filter with activated carbon is monitored via a differential pressure switch and the volume flow rate can be adjusted with a potentiometer.

Extension of work area

The work area can be extended with enlarged side walls for processing larger workpieces.

Foot switch

The TruMark Station 5000 is simple and convenient to operate. You can start the marking process easily with the foot switch.

Operating package

The operating package consists of a monitor, a keyboard, and a mouse to operate the marking laser.

Jog mode of the axes

All axes of the TruMark Station 5000 can be controlled using arrow keys on the control panel of the machine.
