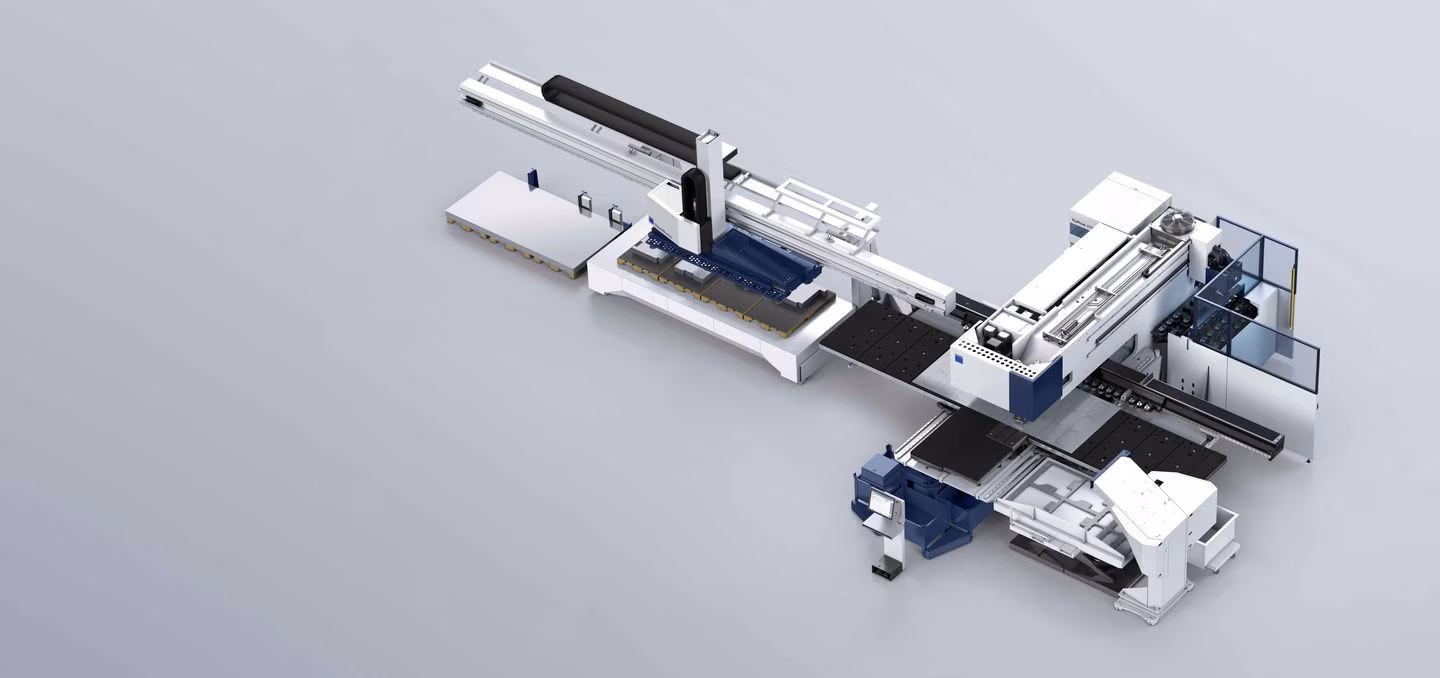

TruMatic 7000
TruMatic 7000 - Image 2
TruMatic 7000 - Image 3
TruMatic 7000 - Image 4

TruMatic 7000

Perfect combination of superb punching performance and efficient laser processing

Be om et tilbud

Fully automated and highly flexible – for maximum throughput, excellent part quality, and peak productivity in the Smart Factory

The TruMatic 7000 brings together the advantages of punch and laser processing in a particularly cost-efficient way. The high-end punch laser machine meets high demands in regards to part quality, productivity, and flexibility. With the active die, you can produce scratch-free parts and profit from the greatest level of flexibility when forming.

A new quality dimension

The active die provides you with scratch-free processing and new forming options due to the active forming stroke from below.

The best edge quality

The CO2 laser guarantees high-precision cutting results through outstanding beam quality.

Additional laser axes

The additional axes provide a clear productivity gain – right up to extremely high levels of productivity.

Automatic cutting nozzle changeover

The automatic nozzle changer removes the old nozzle for new orders, and inserts a new one, saving time in automated operation.

Safe removal

You can remove parts in a process reliable way via sensor-protected flaps.

Productive automation

With the SheetMaster, you can load, unload, and sort parts in a process reliable and automated way.

Complete part processing – post-processing is generally not required

The electro-hydraulic punching head completely processes parts and generally makes downstream working steps, such as deburring, unnecessary.

Safe removal

Gentle, fast, and therefore productive, removal is guaranteed by the sensor monitoring of the flaps.

Available in the following models:

TruMatic 7000 large formatTruMatic 7000 medium format

Technical Data sheet

Receive the technical data of all product versions as a PDF.

Request Technical Data sheet

Flexible forming

With the active forming die from below, you can achieve sizes and heights that were previously unattainable. The 360° rotation of the punching head also provides you with flexible processing options. Using the laser, you can cut high-quality outer contours and delicate inner contours. For this component, the following tools were used: cup tool, extrusion tool, tapping tool, embossing tool – symbol (underside of the sheet), bridge tool, MultiBend size 5, and positioning tool size 5.

Wide range of contour flexibility

Process sheets up to 0.3 inches thick with a wide range of contour flexibility, including tapping, countersinking, and weld positioning. For this component, the following tools were used: embossing tool, countersink forming tool, tapping tool, center boss tool, special punching tool.

Impressive possibilities

With the options of roller technology and tapping, you can also produce complex components. For this component, the following tools were used amongst others: Extrusion tool from below, cluster tool, MultiBend, roller offset tool, roller beading tool.

Small contours, delicate parts

The additional axes of the TruMatic 7000 ensure maximum productivity when processing sheet metal. As such, even small contours or delicate parts can be efficiently cut.

TruTops Boost

Construct and program your laser, punching, and combined punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution.
Se produktet

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part.
Se produktet

Active die

The active die enables scratch-free punching and forming processes. The die can be lowered during positioning so the sheet does not have any contact with the die – for both punching as well as higher forming dies. When forming downward, there is no longer a risk of things getting caught. In addition, you can perform strokes from below with the active die, expanding your range of forming options.

Ball tables or brush tables

For sensitive materials, which must not have any scratches underneath, you can use brush tables combined with the active die. Parts which are to be subsequently painted, can also be processed on the handy ball table.

Nozzle changer

If, to process a new order, the machine needs a different cutting nozzle, the automatic nozzle changer removes the old nozzle and inserts a new one from the nozzle magazine. In shift operation, this is particularly useful: Your machine can operate independently.

Smart functions: smart load

Smart load supports sheet alignment on the machine. A sensor in the clamps detects when they do not grip the sheet correctly. If this is the case, the machine table, including sheet, moves.

Smart functions: smart unload

If a finished part does not fall through the part removal flap as expected, a sensor detects this and it is rectified by the machine. Your part is detached and is removed safely.

Smart functions: smart punch monitoring

Before the tool change, smart punch monitoring checks whether a hole was actually punched into the sheet. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. This means that you can avoid rejects, particularly during night and weekend shifts.

Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.

Integrated flattening

When punching sheet metals, compression and tensile stresses are placed on the workpiece which can cause sheet deformation. The integrated flattening machine function and the corresponding tool make it possible to even out surface irregularities during the punching process itself.

MobileControl app

With the MobileControl app from TRUMPF you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. In addition to the static control panel, you have another option for monitoring and controlling your machine.

Large format processing

The machine is available in a large and medium format as desired. The large format enables your sheet metal to be processed in a working area of up to 120 x 60 in. This increases the number of potential part geometries, thereby offering you even greater flexibility.

Cluster tool for integrated flattening

With the cluster tool for integrated flattening, punching and flattening can be performed in a single operation. As a result, not only do the workpieces remain completely distortion-free, you also save a lot of time.

Film slitting tool

For separating protective film from sheets directly on the machine.

Punching tools at a glance

TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.

Loading + unloading + sorting

The SheetMaster guarantees the fast and process-reliable loading, unloading, unstacking, and sorting of your finished parts.
Vis Produktgruppe

Loading + unloading

Cart systems with belt drives for loading and unloading are the tailored solution for expanding your SheetMaster. Unprocessed sheets are automatically provided for loading onto the machine, and a connection to different storage systems is created.
Vis Produktgruppe

Sorting

The SortMaster Box automatically sorts small parts which are removed via the punching or laser flap.
Vis Produktgruppe

Disposal

The GripMaster ensures convenient scrap skeleton handling. It removes scrap skeletons and remainder strips automatically and stacks them on a scissor table.
Vis Produktgruppe

Tool handling

The ToolMaster Linear also provides space for an additional 18, 54 or 90 tools which are automatically positioned in the linear magazine of your machine. This means you can complete even complex orders with numerous tool changes quickly and automatically.
Vis Produktgruppe
