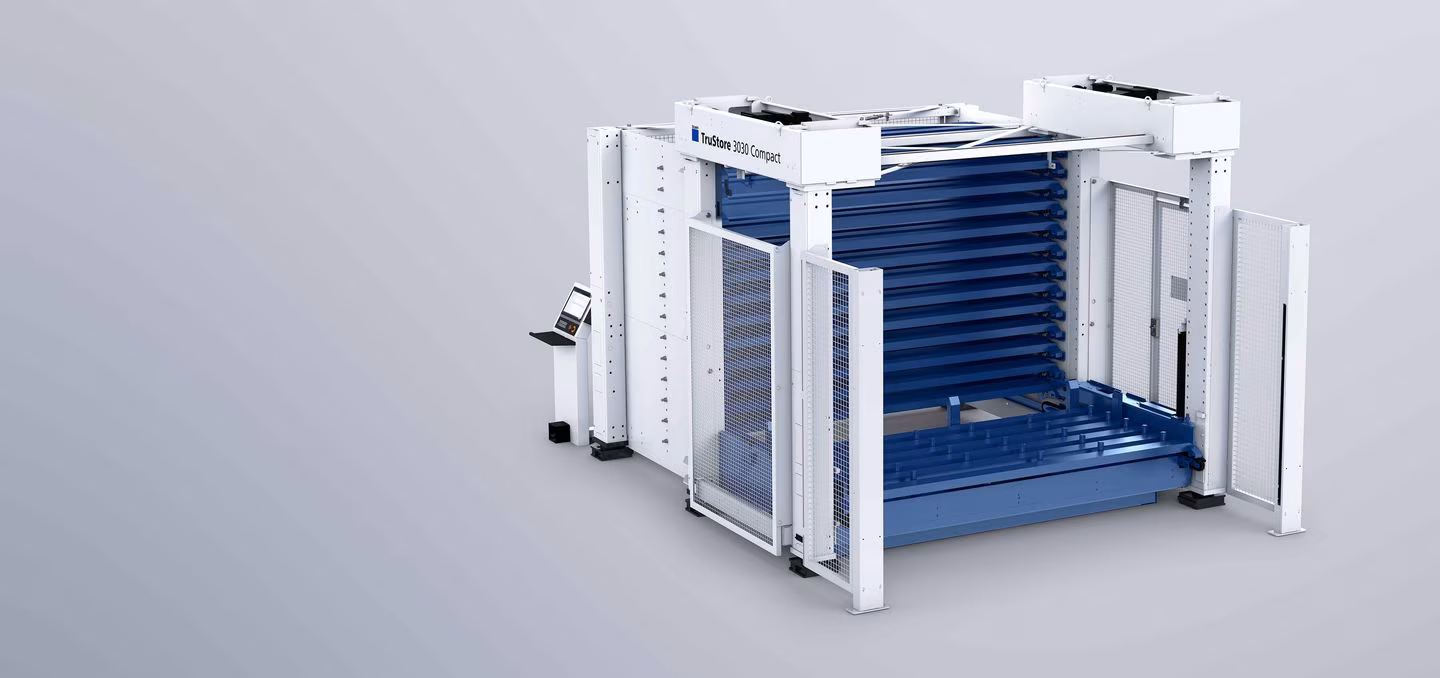

TruStore Series 3000 Compact

The storage tower with pallet lift stores 6-13 pallets in large format (3390 mm storage tower height) or 4-9 pallets in maximum format (3550 mm storage tower height) at a stacking height of 90 mm, depending on the connected automation. The pre-assembled, low tower minimizes floor load and installation time – perfect even for small halls.

Choose between large format (3000 x 1500 mm) with 3000 kg loading weight per compartment or maxi format (4000 x 2000 mm) with 5000 kg loading weight per compartment.

Load and unload your single tower directly at the pallet lift – with automatically folding support stamps and stops and access from one long side. Saves time and money through integration and fast installation.

Load and unload your single tower directly at the pallet lift – with automatically folding support stamps and stops and access from one long side. Saves time and money through integration and fast installation.

With a flexible cart, you can store and retrieve on the long side – compatible for both tower systems. The traverse path adapts to your premises and processes. If the cart is outside the tower, you have access to the pallets on all sides. Meanwhile, the pallet lift raises and lowers the material from the support stamps on the cart.

Store and retrieve with up to two front carriages – compatible for both tower systems. You can adapt the traverse path and direction to your premises. If the cart is outside the tower, you have access to the pallets on all sides. The cart has a lifting table with support plungers that moves the material directly.

Connect your loading/unloading and sorting units such as LoadMaster, LiftMaster, LiftMaster Linear or SheetMaster to the warehouse using transport carts. Choose between single or dual carts and adapt the traverse paths to your premises. The automatic supply of materials increases productivity and machine runtime while reducing the number of personnel required. Optimize processes and buffer capacities with additional options.

Integrate loading and unloading units such as LiftMaster Compact, LiftMaster Store or LiftMaster Store Linear alongside the storage tower. Direct access to storage pallets ensures minimum cycle times. In addition, you save space and personnel commitment and increase productivity and machine runtime. The modular design of the automation and storage systems allows the cells to be expanded in stages at a later date – you remain flexible with a low investment risk. You can also optimize your parts sorting with the optional PartMaster conveyor belt.

Equip your store to meet your needs: Pallet bases secure small parts, a weighing device in the pallet lift enables permanent stocktaking, an unpacking table simplifies the separation of raw materials and wooden pallets.
