TruTool S 450

For heavy-duty tasks

Be om et tilbud

For heavy-duty tasks

The TruTool S 450 is equipped with a robust cutting table specifically designed for thick sheet. This enables you to produce high-quality cuts in sheet thicknesses of up to 0.177 in. Above all, the machine is particularly well-suited for processing stainless steel up to 0.1 in. You can cut radii starting from 1.37 in without force. With a working speed of 19.5 feet per minute, you can progress quickly with your work. This is particularly advantageous when processing large sheets. The cutters can be adjusted quickly and easily to the sheet thickness using a rotary knob.



Particularly powerful in thick sheets

Powerful 1700 W motor with a cutting table specifically designed for thick sheet.

Adjustment without the need for tools

Cutter height adjustment enables individual adaptation to the sheet thickness.

Extremely user-friendly

The bow-handle, for one-hand and two-hand operation, ensures reliable machine control.

Long service life

The cutters each have two cutting edges and can be used either at the top or bottom.

TruTool S 450, dimensional drawing

Technical Data sheet

Receive the technical data of all product versions as a PDF.

Request Technical Data sheet

Flat sheet

Cutting and trimming of flat sheets. For radial and interior cutouts as well as notching.

Coil processing

For cutting coils. For relief cuts and sampling.

Grids

For cutting the most diverse wire grids.
The following consumables and the corresponding accessories are included in the scope of delivery.

Cutter

Integrated

Case (TRUMPF Box 165L)

1 unit 2883101

Grease gun (filled with "G1")

1 unit 1369906

Tube of grease "G1", 0.88 oz

1 unit 0344969

Allen key DIN 911-5

1 unit 0067857

Allen key DIN 911-2

1 unit 0002946

Cutter CR

Set of 2 0140452
For high-tensile sheets up to 114,000

Lubricating grease G1

Grease gun (filled with "G1")

1 unit 1369906

Lubricating grease G1

0139440

Cutter

Set of 2 0140451
For steel up to 57,000

Lubricating grease G1

0.88 oz. 0344969

Workstation without pedestal

1 unit 0979371
For the stationary processing of small workpieces and wire grids.

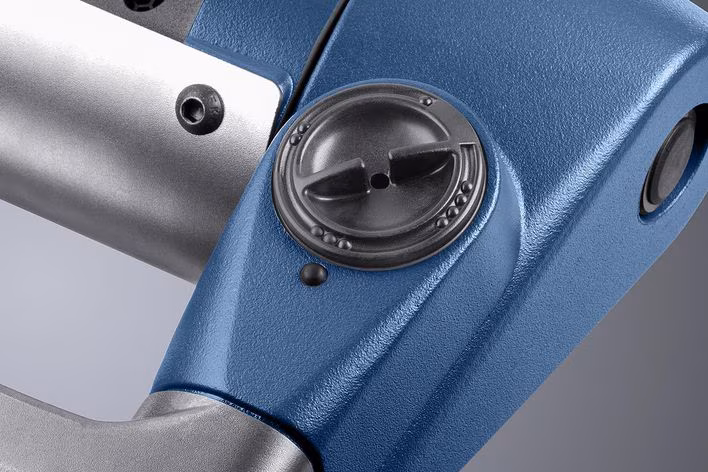

Height adjustment without tools

The handy marking points on the rotary knob make it easy to adjust the cutters, for curves or straight cuts. The perfect setting is available for every application and sheet thickness. This facilitates sheet metal processing, enabling you to carry out work effortlessly.

Two-way blade rotation

You can achieve high-quality cutting results due to the secure cutter attachment. If the cutting performance decreases, you can rotate the cutter by 180° and continue working with a new cutting edge. The result is optimum cut quality, combined with a long tool life.

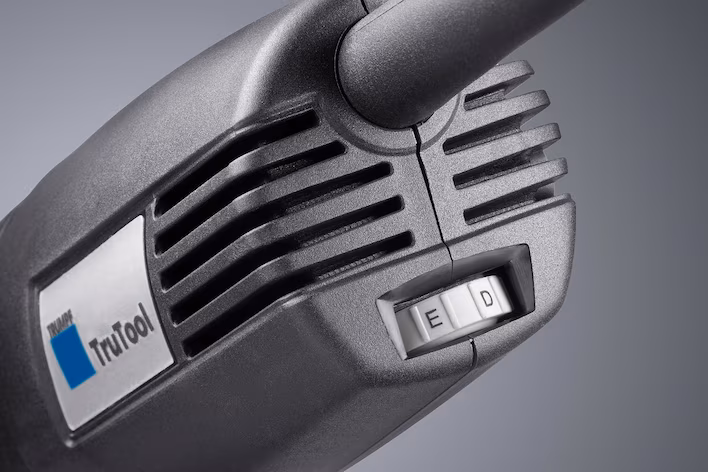

Optimal working speed

An easy-to-use speed controller on the motor regulates the stroke rate and adapts to the respective application. This is particularly well-suited for working with scribed lines, where radii and stainless steel are frequently processed. Reducing the stroke rate achieves the optimal torque, especially for processing sheet thicknesses from 0.16 inches. Lower speeds are recommended for cutting stainless steel. The speed controller can be used to adjust the working speed in line with the respective working situation.
