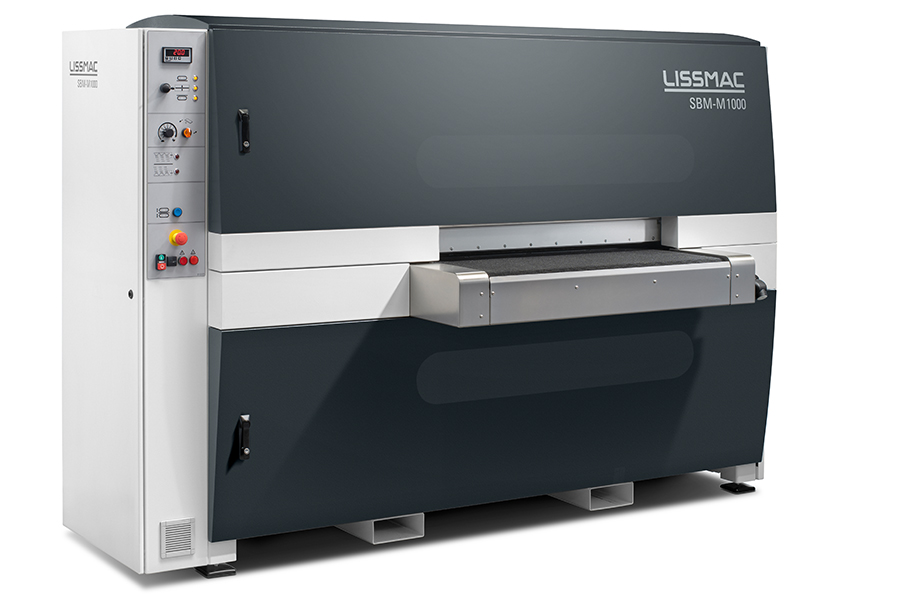

SBM-M B2

Oxide removal in one single pass on all inside and outside edges of sheet and plate up to 20 mm material thickness
No need to turn sheets over and running them through the machine again
Up to 60 % work time savings compared to one-side processing brush machines
Highest quality during subsequent processing or finishing
Simultaneous brushing of interior and exterior contours

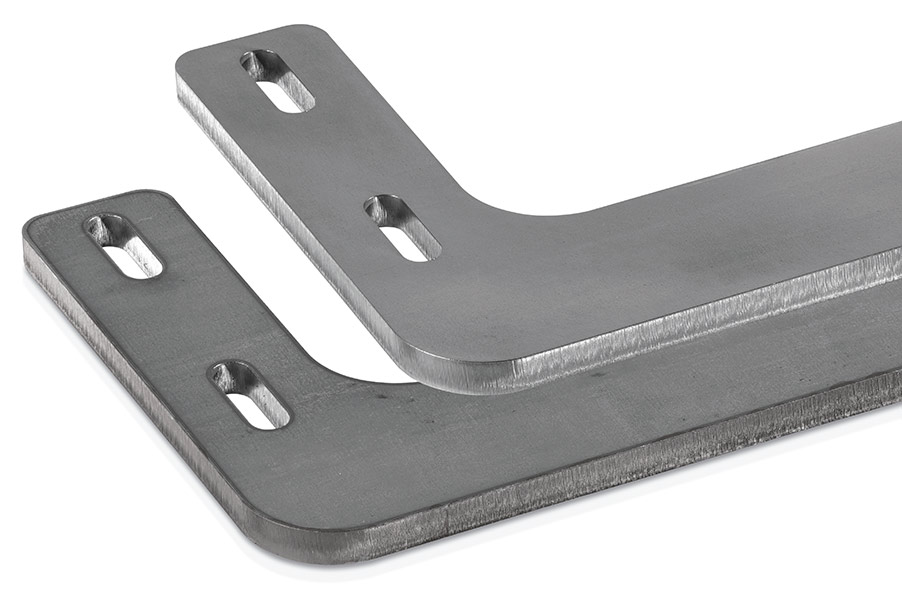

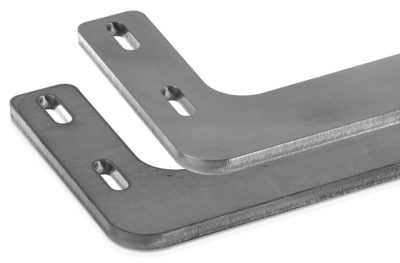

All sharp edges blended
Improved surface quality from removal of rust, scale and dirt
Protective oil film remains intact
The cross-machining principle guarantees optimum tool utilisation over the entire working width.
Simple, intuitive operation
Faster and simpler tool change within just a few minutes
Modular and compact in modern machine design – smaller footprint
Improved work environment – Reduction of dust, dirt and noise
Optionally available: Conveyor Technology; Handling Systems, Automation; Custom Solutions





Du kan også finne mer informasjon på  LISSMAC  sine nettsider

Kategori:

Video

Technical data

SBM-M B2

working width max.1000 / 1500 mm
workable material thickness1.0 -20 mm
voltage400 V / 50 Hz
network structure3~ PEN / 3~ PE+N
total power45 A
total current consumption19.6 kW
insulation classIP 42
infinitely variable feed speed0-4 m/min.
adjustment of material thicknesselectric
adjustment of toolselectric
weight approx.2000 / 2300 kg
dimensions (W/D/H ) approx.2600/1400/1800 mm
3100/1400/1800 mm
