TruLaser Tube 7000 fiber

Maximum productivity due to the solid-state laser – even in XXL

With the Trulaser Tube 7000 fiber, the solid-state laser has a broad processing spectrum. The solid-state laser represents fast and flexible processing. Due to RapidCut, the high feed rates of the laser come into their own even on smaller contours. This is a significant productivity advantage, particularly in thinner materials. The open machine concept gives the TruLaser Tube 7000 fiber optimal accessibility during loading and unloading. This means the machine is efficient from a lot size of 1. Due to the Central Link interface, the machine is also optimally equipped for Industry 4.0.



Product Description

Diameter of up to 10 in.
Process parts with a diameter of up to 10 in. and wall thicknesses of up to 0.4 in. for mild steel.
Significantly reduced part times
Due to RapidCut, the high feed rates of the solid-state laser come into their own even on smaller contours.
Optimal access to the machine
Thanks to its open concept, the TruLaser Tube 7000 fiber offers optimum access.
High-quality bevel cuts
The bevel cutting option enables high-quality bevel cuts of up to 45°.
Optimum cutting result
The TruDisk solid-state laser and high-quality cutting data produce the best possible results.
Excellent process reliability
The state-of-the-art sensor system ensures your entire machining process runs smoothly.
Minimal non-productive time
The fully automatic machine settings mean that there is minimal non-productive time when using the TruLaser Tube 7000 fiber.
Integration of subsequent processes
The TruLaser Tube 7000 fiber can optionally take over further process steps such as tapping threads.

Technical data

Equipment



Smart profile detection
With smart profile detection, you can load even profiles with challenging geometries automatically.
SeamLine Tube
SeamLine Tube identifies weld seams or markings in order to align each tube correctly on the machine. As an option, the function can also scan the inside of the tube.
TruLaser Tube 7000 fiber, RapidCut
RapidCut
With RapidCut, the high feed rates of the solid-state laser come into their own even on smaller contours. This is a significant productivity advantage, particularly in thinner materials.

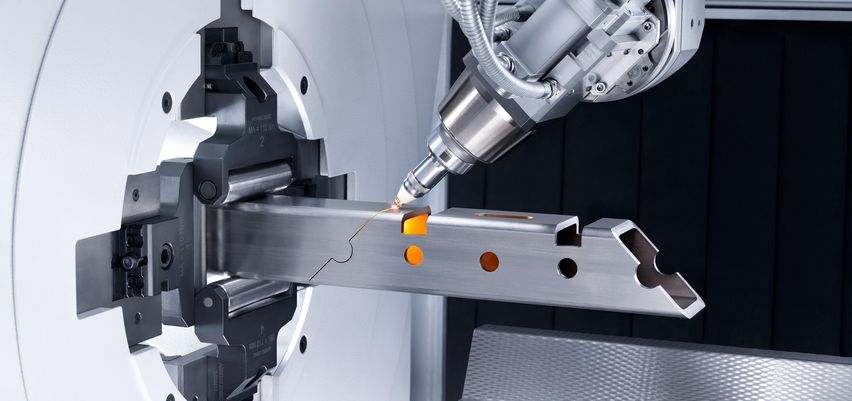

Bevel cuts of up to 45 degrees
You can expand your range of parts with high-quality bevel cuts of up to 45°.
Single-cutting-head strategy
With the one-cutting-head strategy, you can process multiple material types and thicknesses with the laser without changing the cutting head.
TruLaser Tube 7000 fiber, sensor system
Sensor system
Your machine is ahead of the game: sensors detect whether or not a part has been correctly ejected.
Condition Guide
One glance is enough: Due to the new Condition Guide function, you are always informed about the condition of your machine. A traffic light system shows the status of important elements which influence the cutting capability of the machine. Condition Guide will give you recommendations for action as required. Process diagrams facilitate forecasting as to when action may need to be taken. Maintenance work can therefore be planned efficiently.
MobileControl app
With the MobileControl app, you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. The app enables you to call up different machine information at different places in the working environment of the machine, such as the tube storage, or to change the program.
Magnetic coupling
The magnetic coupling with bellows protects the cutting head against potential damage and dirt, especially in the event of a cutting head collision. This means that production can be resumed after a short time.
Dot Matrix Code
Label your parts quickly and reliably with a standardized industry code – the Dot Matrix Code feature enables this.
TruLaser Tube 7000 fiber, conveyor tables
Conveyor tables
Conveyor tables at an ergonomic height make it easier to unload tubes and profiles. They also serve as a practical material buffer.
FocusLine
No more adjustments by hand: the FocusLine control mechanism keeps the focal position of the laser constant and automatically adapts it to the material.
PierceLine
PierceLine controls and monitors the piercing process. The piercing process is ended as soon as the material is completely cut through. This leads to more accurate results and shorter processing times.

Automation

Loading

The LoadMaster Tube loading unit means you can set up much faster because the bundle space automatically provides the unprocessed material. The swivel-mounted conveyor system shows its strengths, especially with small lot sizes, intermediate production, and special profiles. It is also possible to set up the LoadMaster at the front of the machine. This enables you to adapt the layout of the machine to your material flow.
