TruTool TPC 165

Perfect cuts straight away

With the TruTool TPC 165 panel cutter, you can cut sandwich panels up to a thickness of 165 mm. The insertion mechanism of the blade enables the production of accurate, perpendicular interior cutouts and notches. All of this can be done in just one operation. The machine is ready for operation without presettings. Simply select the correct blade position and begin cutting. The TruTool TPC 165 can cut panels regardless of whether the surface is flat, trapezoidal or corrugated.





Perpendicular cuts
Swiveling 90° blade, well-suited for perpendicular cutouts with a depth of up to 6.5 inches.
With the insertion mechanism, you can start at any position on the panels.
Up to four meters per minute
You can cut the upper and lower sheets in one press operation, without the need for reworking.
Compact and light
The TruTool TPC 165 weighs just 9.6 kg and is based on a sheet design that is both stable and light.




Dimensional drawing, TruTool TPC 165

TruTool TPC 165
TruTool TPC 165, integrated lubrication

Integrated chain lubrication

No heating up of the chain. The automatic lubrication ensures a constant cut quality together with a long tool life.

Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool TPC 165, Sägekette 165
Saw chain 165 (integrated)
1 unit 1730983
TruTool TPC 165, Schwert 165
Blade 165 (integrated)
1 unit 1809537
TruTool TPC 165, Gleitschiene
Slide rail (integrated)
Set of 2 1814882
TruTool TPC 165, Verschleißplatte
Wearing plate (integrated)
1 unit 1814819
TruTool TPC 165, Verschleißplatte vorne
Wearing plate, front
1 unit 1814820
Zubehör Standbild
Combination wrench
1 unit 1797742
Zubehör Standbild
Punching and nibbling oil for steel, 500 ml
1 unit 0103387

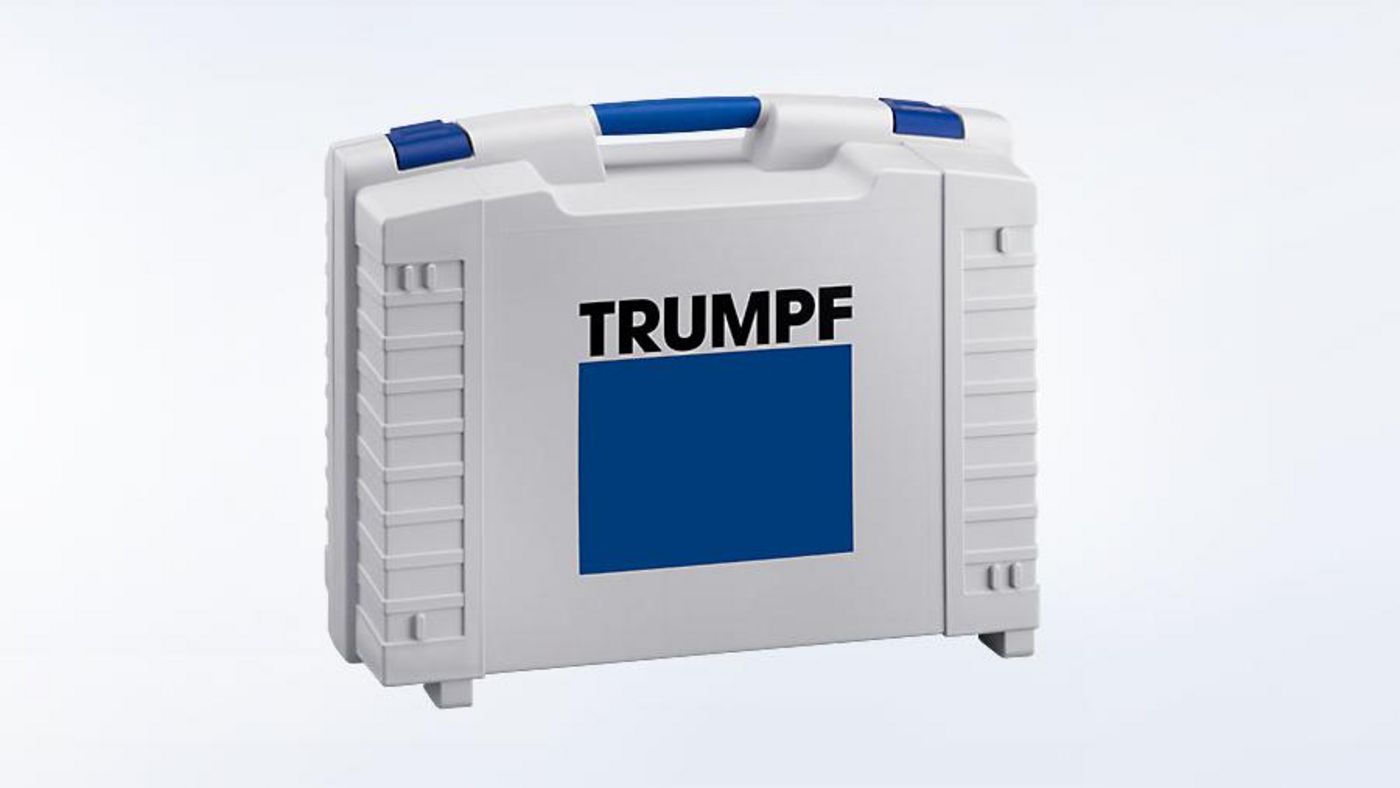

Koffer für TruTool TPC 165
1 unit 1798090


Find the right consumables and accessories for your machine here.

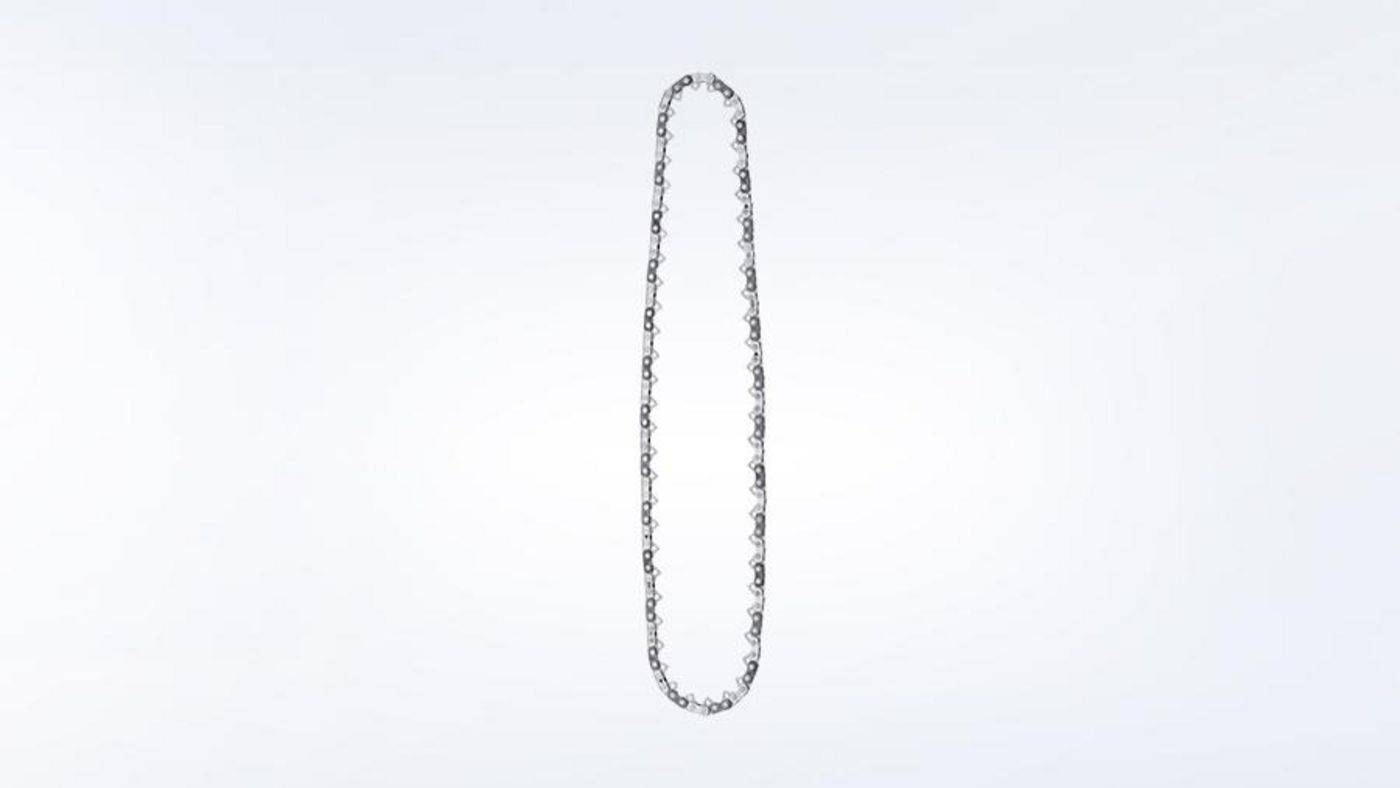

TruTool TPC 165, saw chain 165
Saw chain
1 unit 1730983

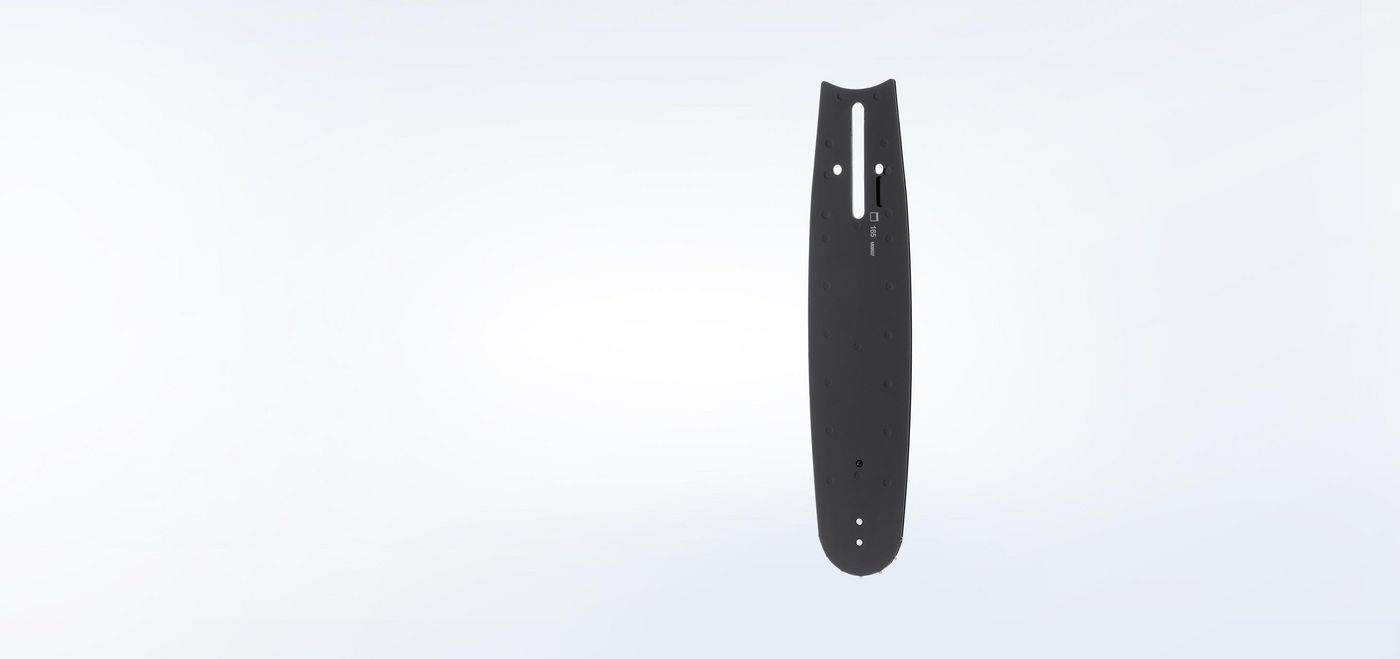

TruTool TPC 165, blade 165
Blade 165
1 unit 1809537

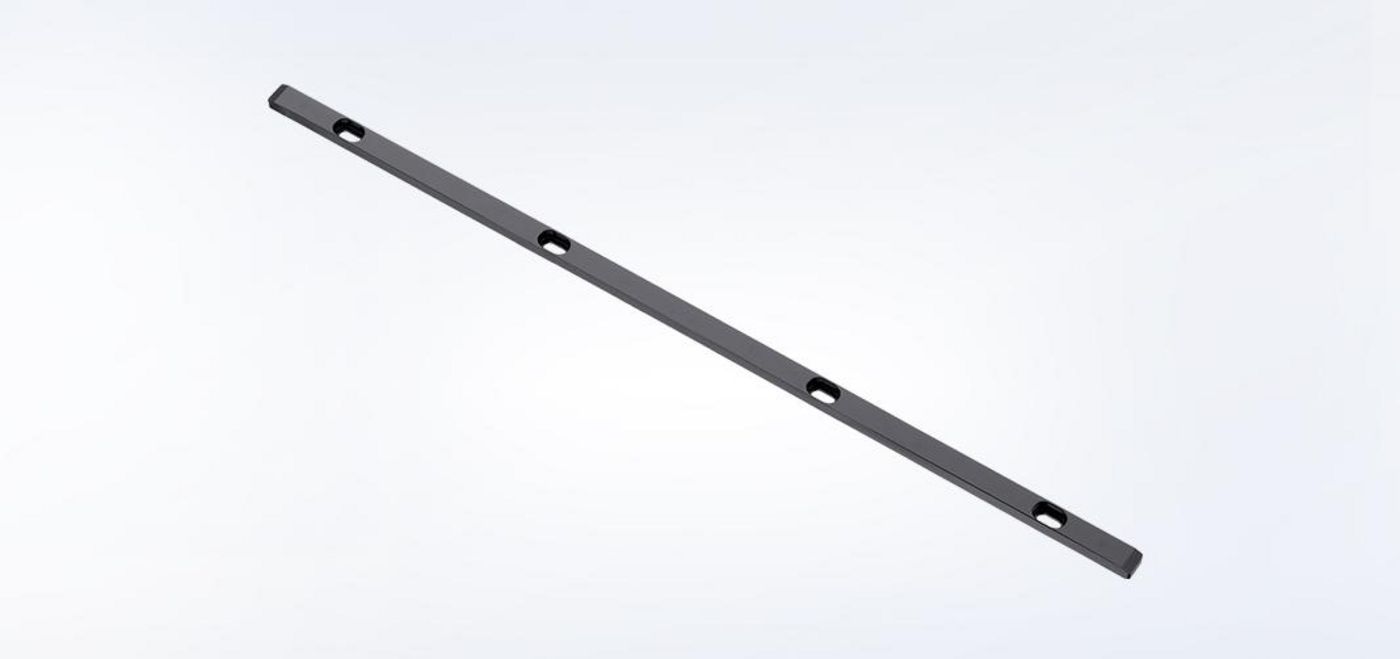

TruTool TPC 165, slide rail
Slide rail
Set of 2 1814882
TruTool TPC 165, wearing plate
Wearing plate
1 unit 1814819
TruTool TPC 165, front wearing plate
Front wearing plate TruTool TPC 165
1 unit 1814820
TruTool TPC 165, guide rail
Guide rail
1400 mm
1 unit 1831777
Still image of accessories
For guide rail
1 unit 1831778

Customer benefits

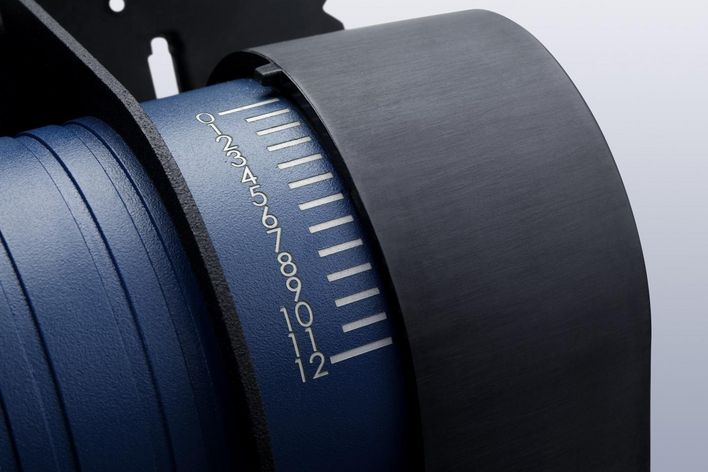

TruTool TPC 165, blade fastening

Perpendicular cuts

By securing the blade, it is possible to set a cutting depth that corresponds to the cutting task. There are 13 positions to choose from, ranging from 0° to 90°. This results in a precise and even cutting depth without the need for rework. This even includes cutting tasks where the lower sheet side must not be cut through.

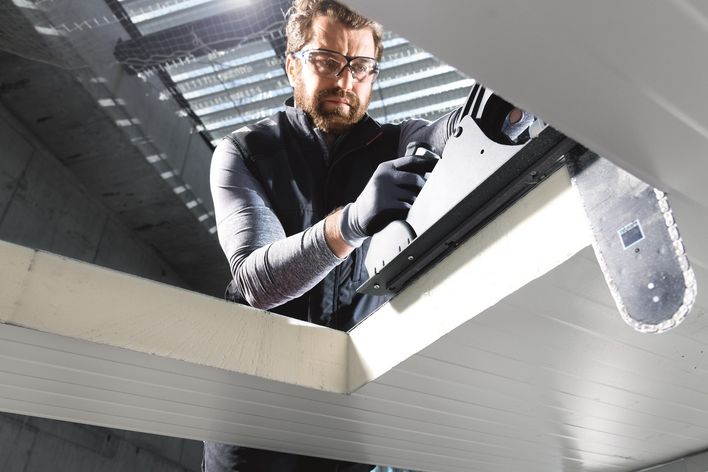

With the TruTool TPC 165, you can produce precise interior cutouts and notches effortlessly. This is possible in one press operation without the need to turn the panels. Clearly visible cutting markings ensure accurate cuts all along the cutting line. Additional table markings on the machine provide useful reference points for the blade insertion position.

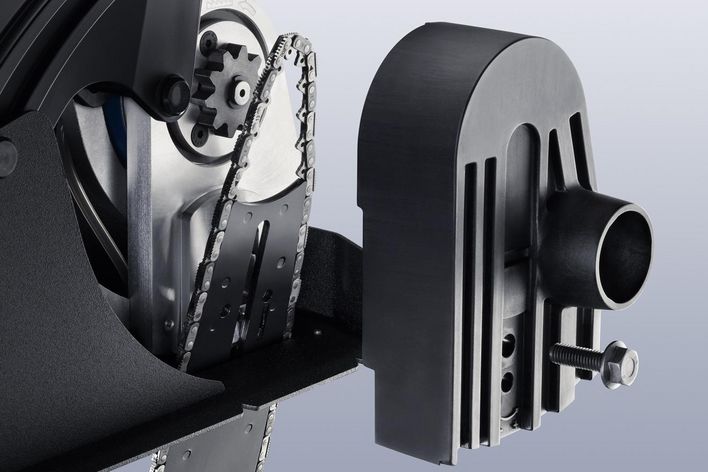

 TruTool TPC 165, chain replacement

Simple tool change

Replacing the chain and blade is quick and simple: Remove the protective cover, lift the saw chain with the blade out of the chain wheel, insert a new saw chain, and tighten. It is helpful and valuable to have the right combination wrench, kept in the machine and close at hand
