TruTool N 200

Lightweight and unbeatable performance on curves

The TruTool N 200 can be used to cut flat and corrugated sheet. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. There is no need for tools to change the cutting direction. You can upgrade and expand the TruTool N 200 with additional tools according to your needs. This means, for example, even cutting trapezoid sheets is not problem. The machine offers an impressive top cutting speed of 5.5 feet per minute.





Outstanding performance on curves
The hollow round punch provides maneuverability and enables the machine to turn on the spot.

Cutting direction can be modified in seconds
The tool can be rotated through 360° in steps of 45°, without the need for additional tools.

Change without the need for tools
You can change dies and punches quickly and without the need for additional tools.

Compact, lightweight, and ergonomic
The TruTool N 200 fits comfortably in your hand with its weight of 4 lbs. and an optimal grip circumference.



Kategori:

Product Description

Nibbler-hard-to-reach-areasCutting direction can be modified in seconds

The TruTool N 200 can be maneuvered cleanly, even in hard-to-reach areas, and the working direction can be adjusted quickly without tools. You can rotate the tool 360°. When combined with a hollow round punch, TruTool N 200 is so flexible it can turn on the spot.

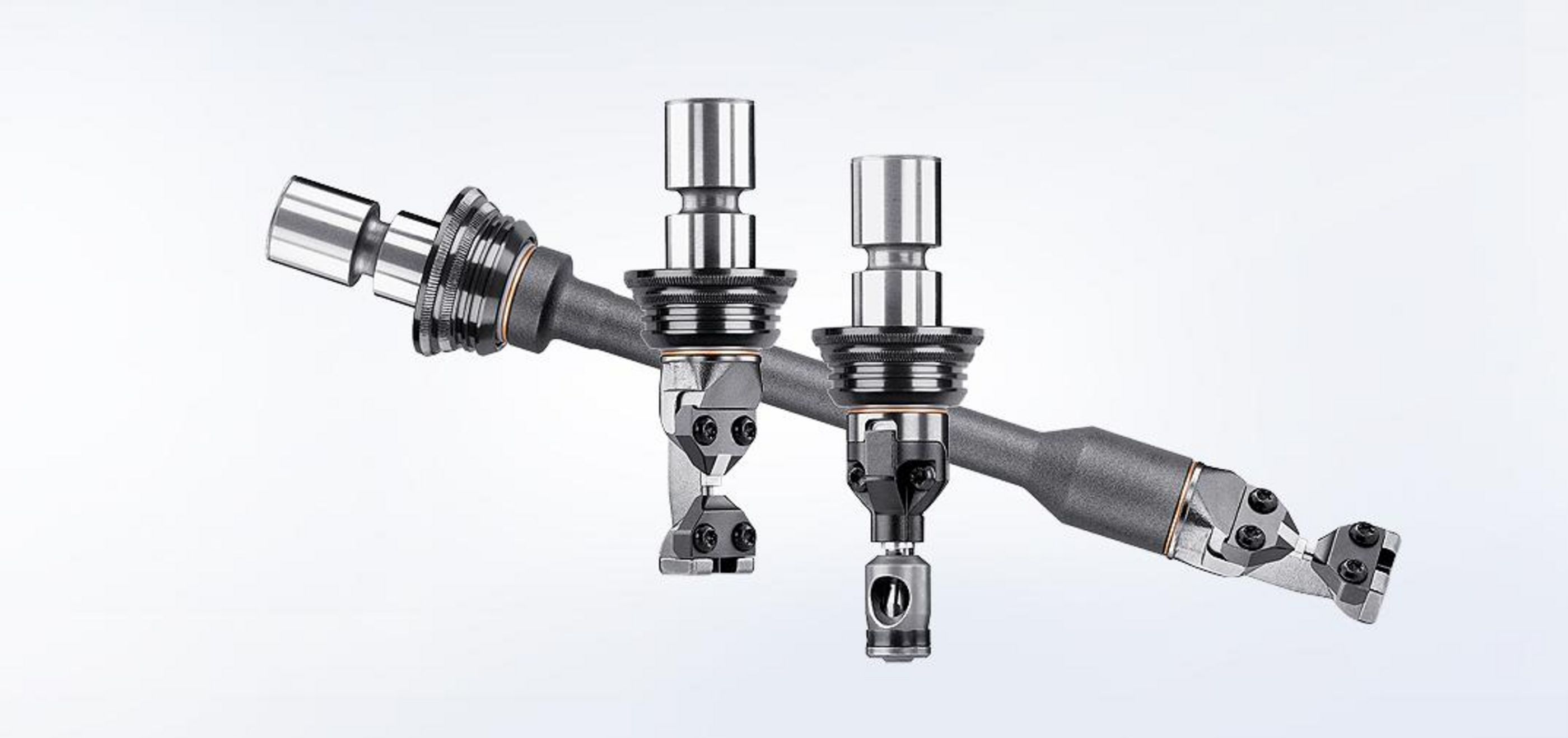

One machine, three toolsCan be retrofitted for flexible work

The TruTool PN 201, PN 200, and N 200 are built on the same multi-functional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 3.34 in. deep and C, L, and U profiles; and TruTool PN 201 for trapezoidal sheets up to 6.37 in. in depth.



















Technical data



Scope of delivery



The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool N 200, Stempel
Punch (integrated)

1 unit 2260180


TruTool N 200, Matrize
Die (integrated)

1 unit 0980335


TruTool N 200, Stempelführung
Punch guide (integrated)

1 unit 1884925


TruTool N 200, Werkzeug
Tool N 200 (integrated)

1 unit 1750694


Zubehör Standbild
Hexagonal wrench

1 unit 1775531


TRUMPF Box S1
TRUMPF Box S1

1 unit 1763681

Accessories



Find the right consumables and accessories for your machine here.

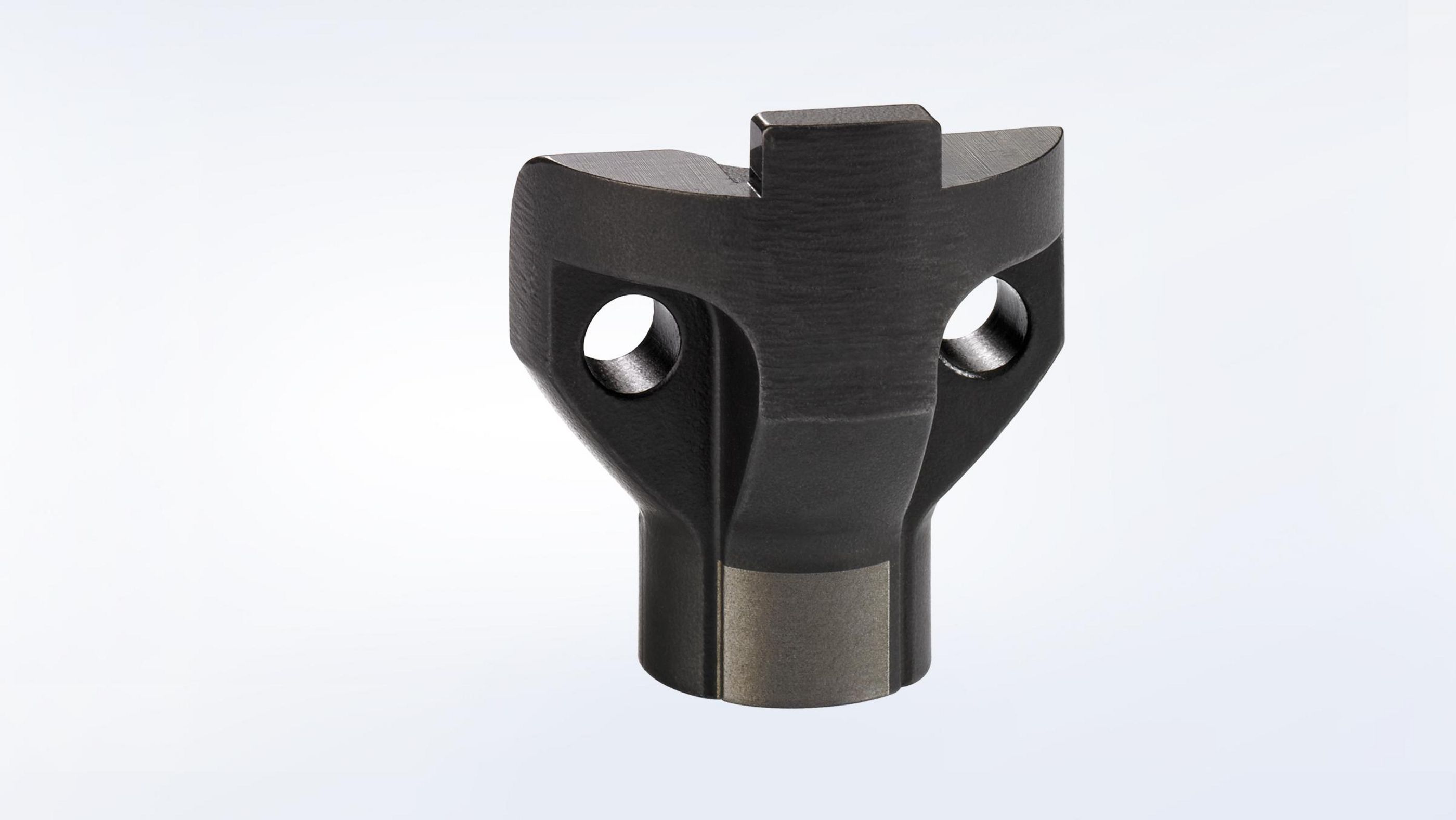

TruTool N 200, punch guide
Punch guide
1 unit 1884925









TruTool N200, punch set
Set

2 x punch and 1 x die

Set of 1 961961

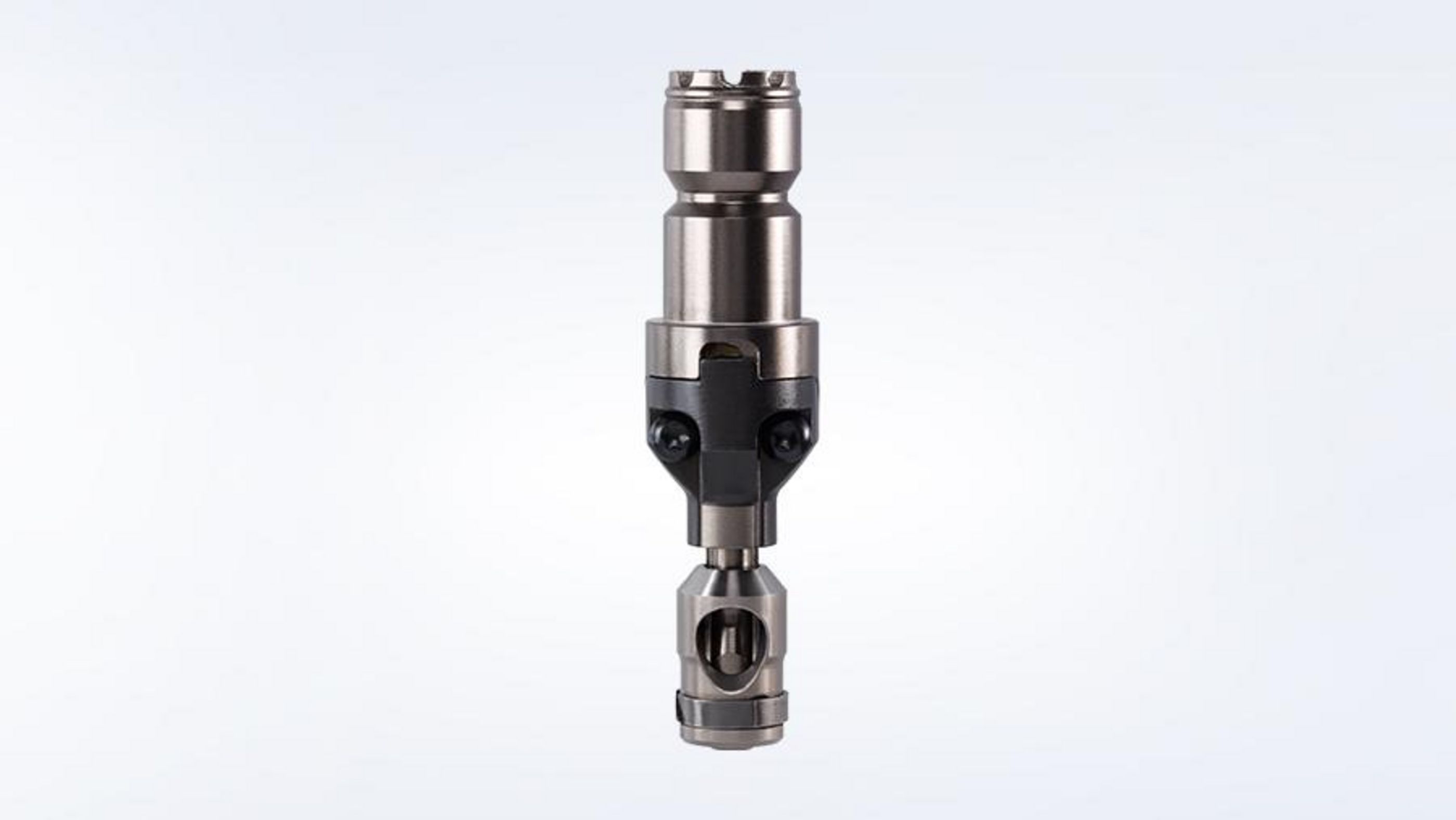

TruTool N 200, tool
Tool TruTool N 200
1 unit 1750694








TruTool N 200, tool
Tool TruTool PN 200
1 unit 1750693










TruTool PN 201, tool
Tool TruTool PN 201
1 unit 1750692








TruTool N200, chip bag
Chip bag

To collect chips

1 unit 88622








Still image of accessories
Punching and nibbling oil for aluminum
1,000 ml bottle 125874










Still image of accessories
Punching and nibbling oil for steel
500 ml bottle 103387









TruTool N 200, punch
Punch
1 unit 2260180
Set of 5 1264176








TruTool N 200, die
Die
1 unit 980335
Set of 2 1264393
Set of 5 1264394








TRUMPF Box S1
1 unit 1763681
