TruTool N 500

Powerful in four directions

The TruTool N 500 offers unique versatility. Thanks to the option of cutting in four directions, i.e. also backwards, you can dismantle tanks and containers, cut coils and process workpieces with bends of up to 90°. The machine is also ideal for cutting high-tensile materials. The optimal weight/performance ratio of 4 kg against a sheet thickness of 5 mm is particularly impressive.



Kategori:

Produktbeskrivelse

4 cutting directions
The machine can be rotated 360° in 4 steps of 90°.

Rectangular punch with flexibility for profiles
Ideal for work in hard-to-reach areas and for cuts across edges and welding seams.

Minimal force required
You work without feed force and so reduce the effort required to a minimum.

Variable speed

You can use the speed controller to adjust the working speed to suit the individual cutting task





Dimensional drawing, TruTool N 500TruTool N 500, dimensional drawing

4 cutting directions

With the TruTool N 500, you can even cut in reverse. The ability to pull the tool horizontally towards you means it is ideal for coil relief cuts. You can also move the nibbler vertically downwards for tank dismantling. All of this is achieved with minimal force and no emissions

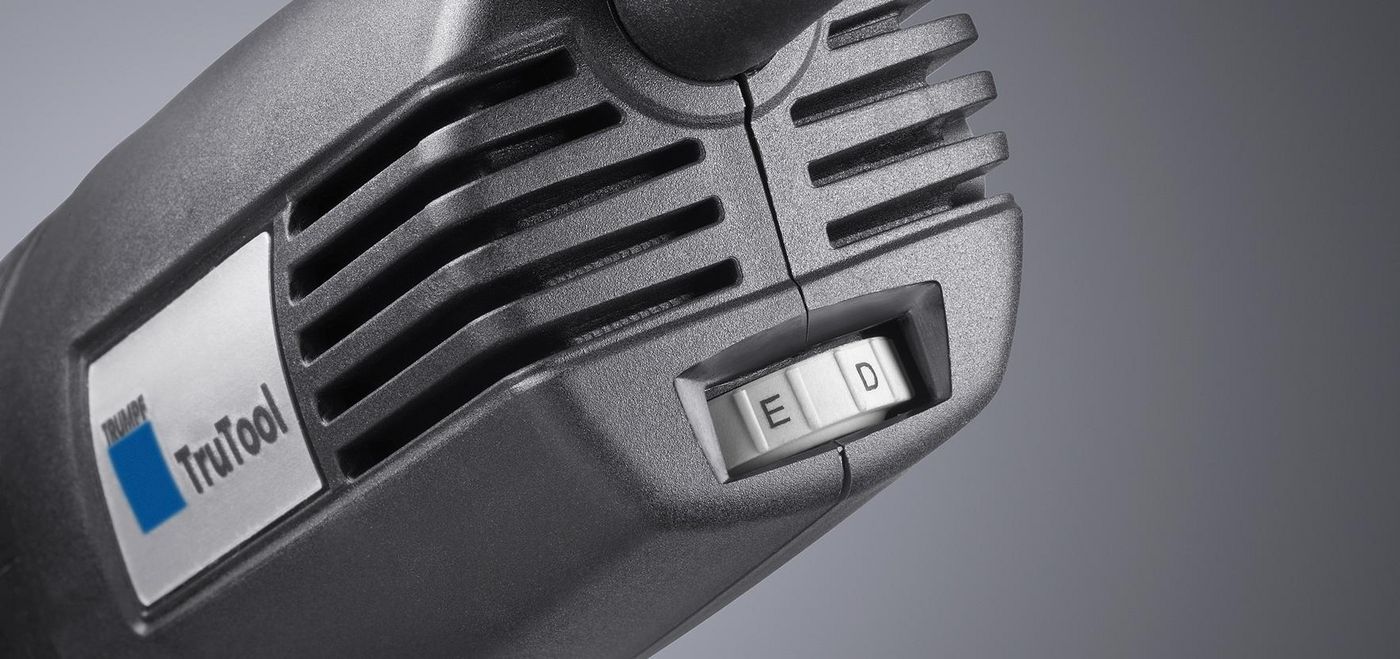

Electro variant speed controller

Variable speed



The speed controller is highly efficient for work with scribed lines or with a template. It is also an excellent choice for frequent processing of radii and stainless steel. You can adapt the working speed to the cutting task. The electronic overload protection offers yet another notable benefit. This has a protective effect on the motor.









Perfect for processing stainless steel



The TruTool N 500 is ideal for cutting high-tensile materials. Specifically designed punches and dies ensure perfect cuts.







Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.


TruTool N 500, Stempel 5 / P5
Punch 5/P5 (integrated)
1 unit 2260199
TruTool N 500, Matrize 5
Die 5 (integrated)
1 unit 1884930
Zubehör Standbild
TruTool N 500 handle
1 unit 0974659
Zubehör Standbild
Allen key DIN 911-4
1 unit 0067849
Zubehör Standbild
Tube of grease "G1", 25 g
1 unit 0344969
TRUMPF Box M3
TRUMPF Box M3
1 unit 1770951

Accessories

The following consumables and the corresponding accessories are included in the scope of delivery.


TruTool N 500, Stempel 5 / P5
Punch 5/P5 (integrated)
1 unit 2260199
TruTool N 500, Matrize 5
Die 5 (integrated)
1 unit 1884930
Zubehör Standbild
TruTool N 500 handle
1 unit 0974659
Zubehör Standbild
Allen key DIN 911-4
1 unit 0067849
Zubehör Standbild
Tube of grease "G1", 25 g
1 unit 0344969
TRUMPF Box M3
TRUMPF Box M3
1 unit 1770951
