TruTool N 200 18V LiHD rechargeable battery

Cordless and unrivalled performance on curves

For the first time, you can use the battery machine to cut flat and corrugated sheets of up to 2 mm sheet thickness cordlessly. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. There is no need for tools to change the cutting direction. You can change dies and punches quickly, without the need for any additional tools. You can upgrade and expand the TruTool N 200 18V LiHD rechargeable battery with further tools as required. This means, for example, even cutting trapng ruezoid sheets is not problem. The 4.0 Ah / 18V LiHD rechargeable battery also ensures lontimes.

Produktbeskrivelse

Outstanding performance on curves
The hollow round punch provides manoeuvrability and enables the machine to turn on the spot.



The perfect combination
The rechargeable battery achieves a runtime that is up to 60% longer thanks to the Power-Head-Technology and brushless motor



Cutting direction can be changed in Seconds
The tool can be rotated 360° in steps of 45°, without the need for additional tools.



For comfortable operation
A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.



TruTool N 200 Li-ion rechargeable battery 18 V, dimensional drawing



Battery technology

Individual electronic cell monitoring in the machine and in the recharger protects the battery against overload, overheating and deep discharge. The robust battery cells have a low energy drop and always remain cool. A microprocessor analyses the battery data and controls an optimal charge and discharge process. The result is high power combined with a long service life for the battery. You can therefore work almost non-stop. The 2 Ah and 4 Ah rechargeable batteries only require 10 – 30 minutes to be charged to 80%.



Nibbler-hard-to-reach-areas

Cutting direction can be changed in seconds

The TruTool N 200 Li-ion rechargeable battery 18 V can be manoeuvred cleanly even in hard-to-reach areas, and the direction of processing can be adjusted quickly, without the need for tools. You can rotate the tool through 360°. Combined with a hollow round punch, the TruTool N 200 is so flexible that you can even turn the machine on the spot.





Can be retrofitted for flexible work

The rechargeable battery and electric variants of the TruTool N 200, PN 200 and PN 201 are built on the same multifunctional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 85 mm deep and C, L and U profiles; and TruTool PN 201 for trapezoidal sheets up to 162 mm deep.

Technical data

Scope of delivery

Punch (integrated)

1 unit 2260180

Die (integrated)

1 unit 09080335





Punch guide (integrated)

1 unit 1884925



N 200 tool (integrated)

1 unit 1750694



Hexagonal bar wrench

1 unit 1775531

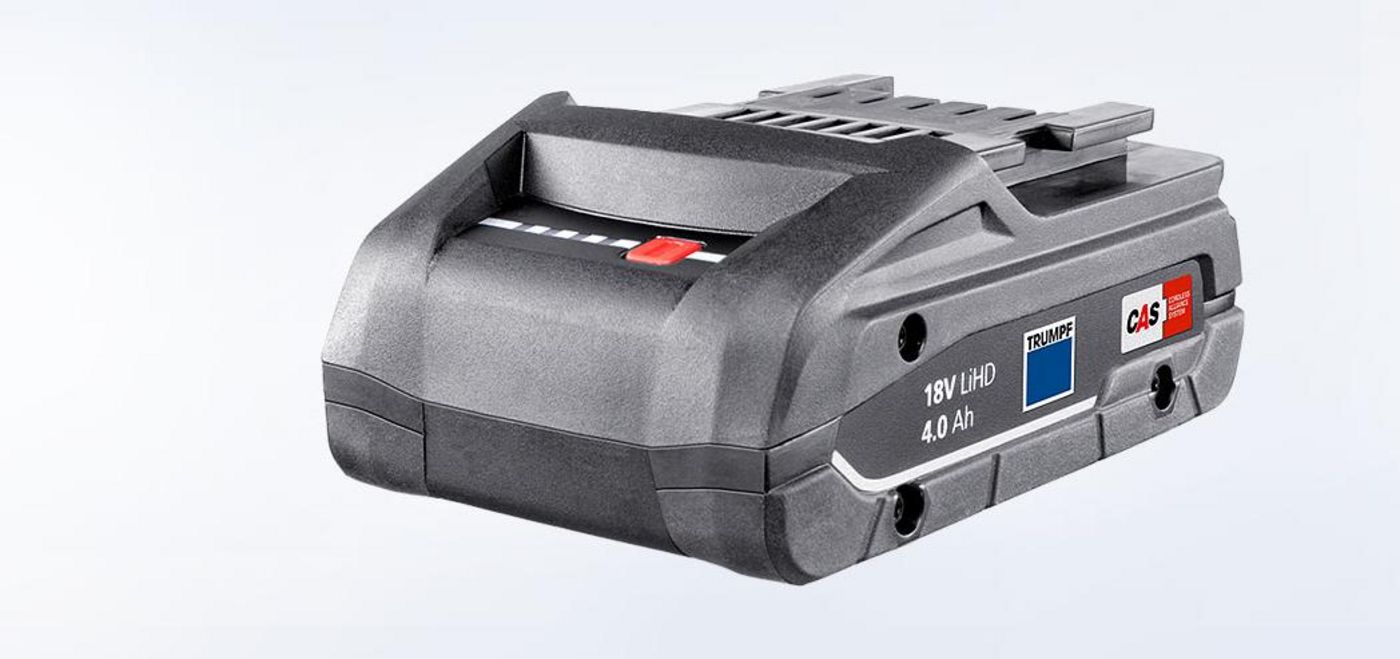

18V LiHD 4.0Ah rechargeable battery
18V LIHD 4.0AH RECHARGEABLE BATTERY



1 Stück 2598811
LG 12V-36V recharger
LG 12V-36V RECHARGER

For 12V and 18V LiHD rechargeable battery

1 Stück (DE/CH) 2569784



18V starter kit
18V STARTER KIT

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE) 2598816

TRUMPF Box M2













Accessories

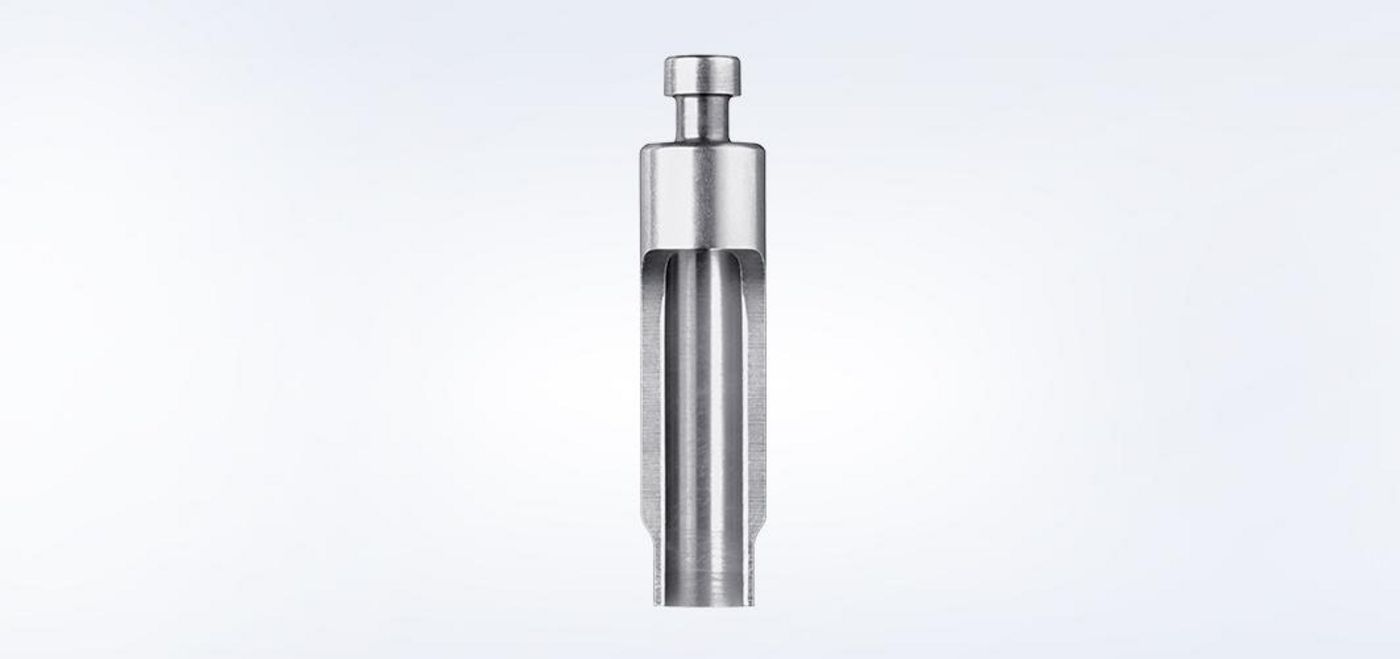

Punch

1 unit 2260180
Set of 5 1264176



TruTool N 200, die

Die

1 unit 980335
Set of 2 1264393
Set of 5 1264394

TruTool N 200, punch guide

Punch guide

1 unit 1884925



TruTool N200, punch set

Set

2 x punch and 1 x die

Set of 1 961961

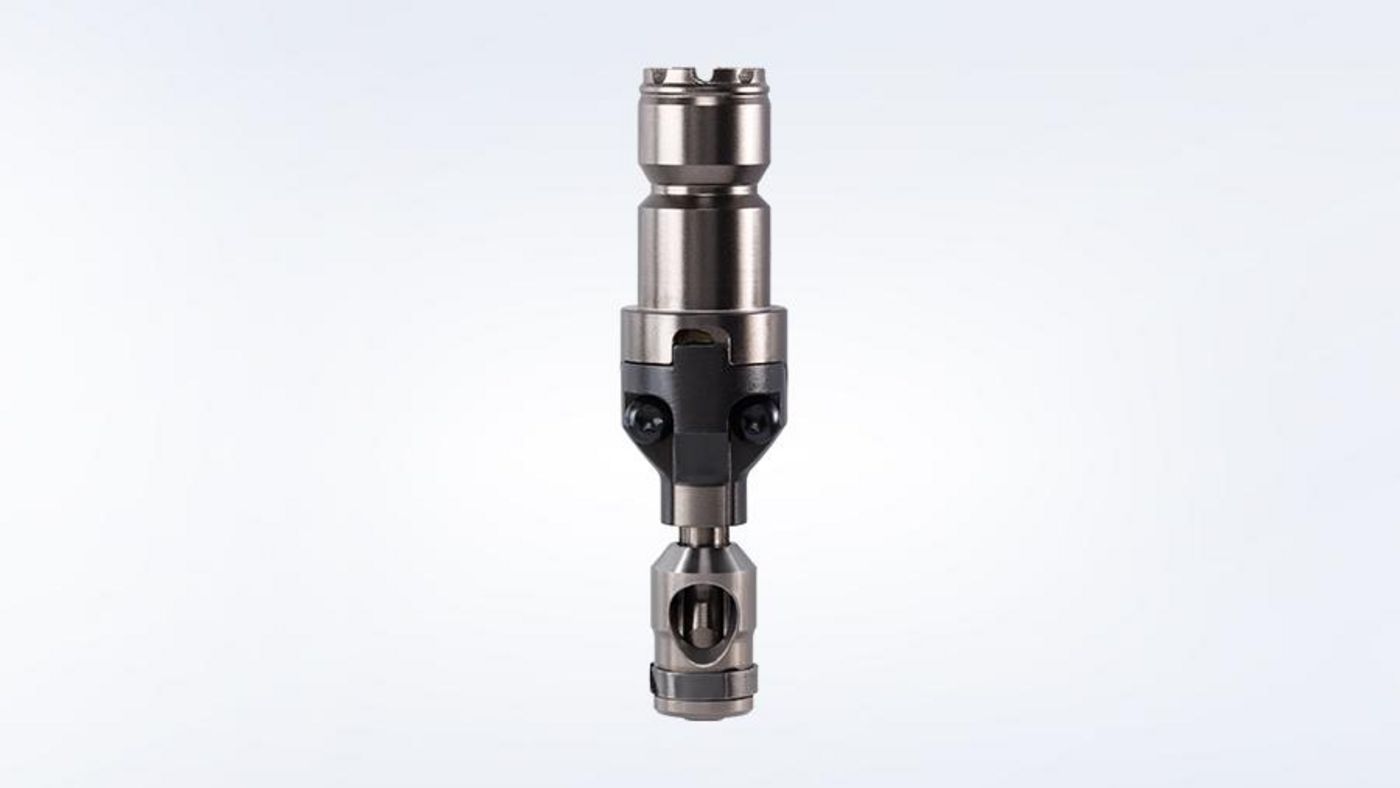

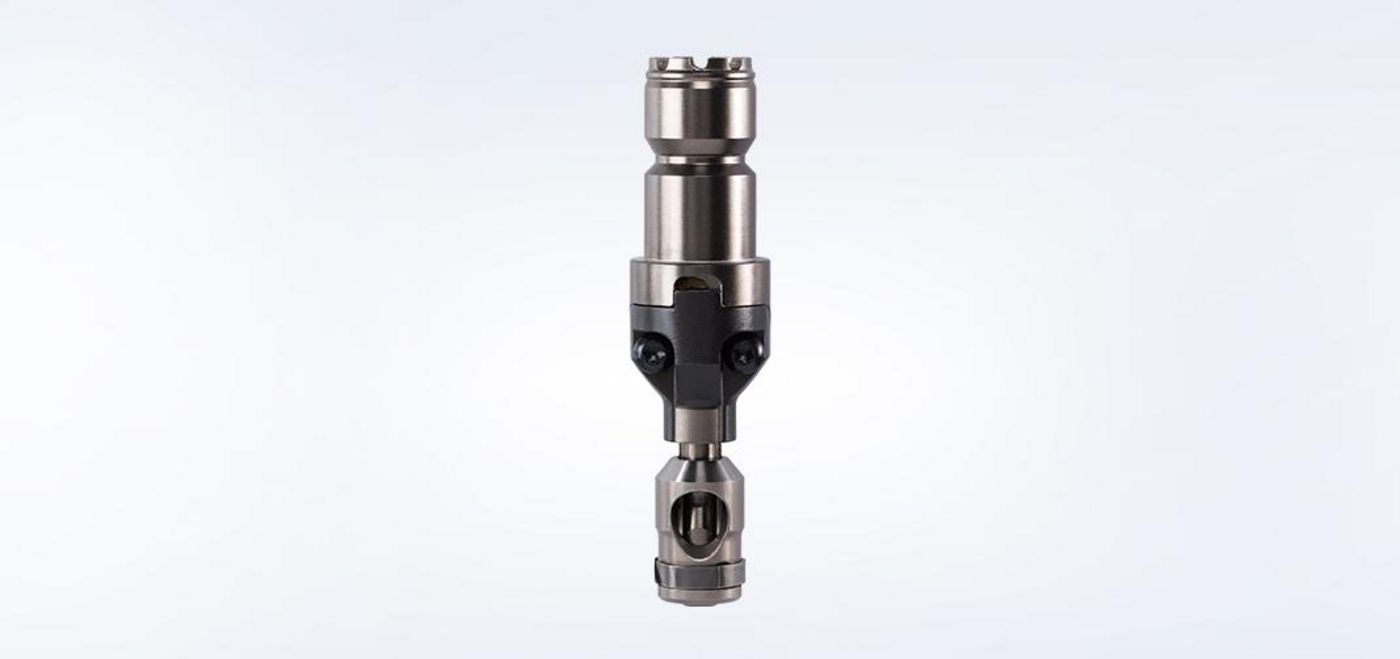

TruTool N 200, tool

Tool TruTool N 200

1 unit 1750694

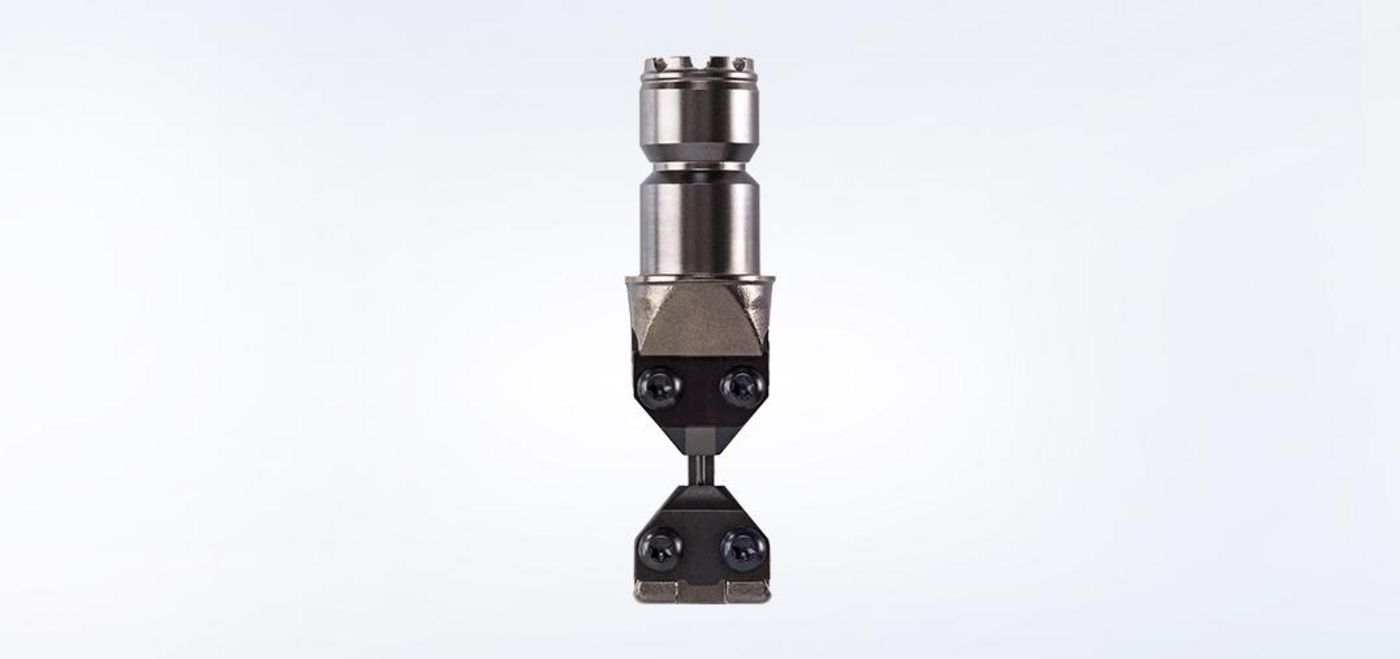

TruTool N 200, tool

Tool TruTool PN 200

1 unit 1750693

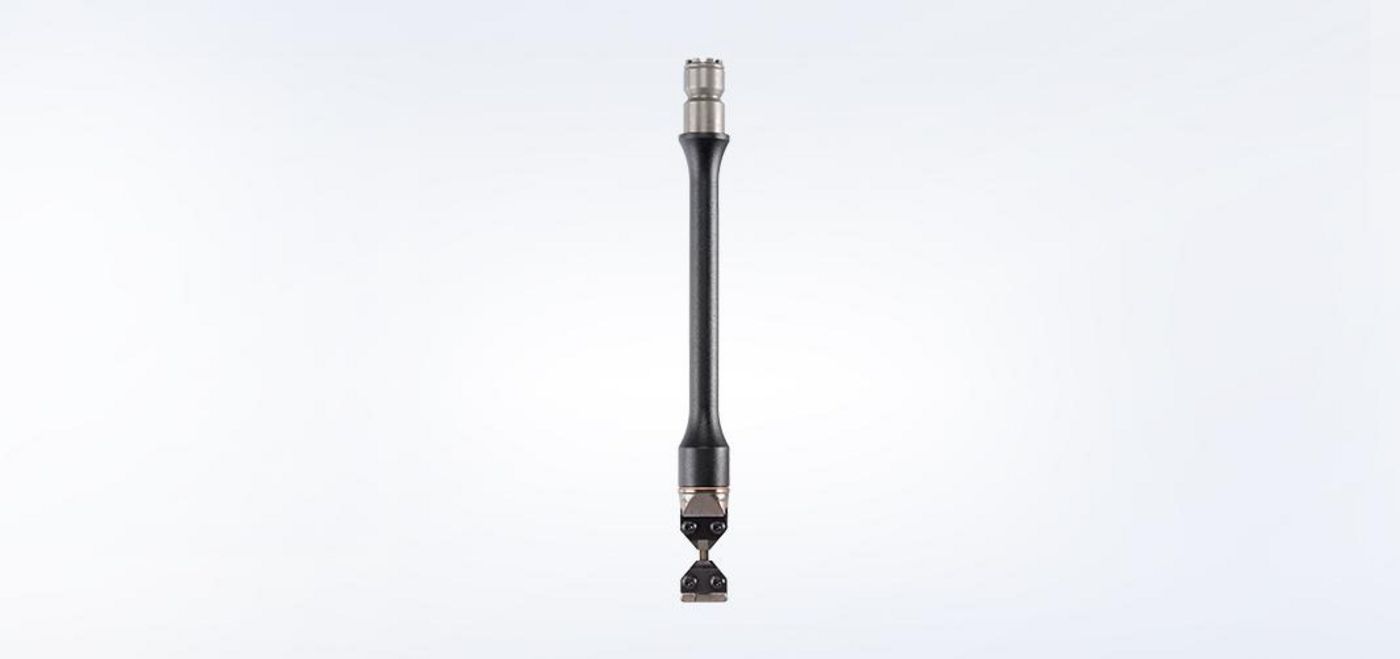

TruTool PN 201, tool

Tool TruTool PN 201

1 unit 1750692



TruTool N200, chip bag

Chip bag

To collect chips

1 unit 88622

Still image of accessories

Punching and nibbling oil for aluminium

1000 ml bottle 125874

Still image of accessories

Punching and nibbling oil for steel

500 ml bottle 103387







18V LiHD 4.0Ah rechargeable battery
18V LIHD 4.0AH RECHARGEABLE BATTERY



1 Stück 2598811
LG 12V-36V recharger
LG 12V-36V RECHARGER

For 12V and 18V LiHD rechargeable battery

1 Stück (DE/CH) 2569784
18V starter kit
18V STARTER KIT

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE) 2598816

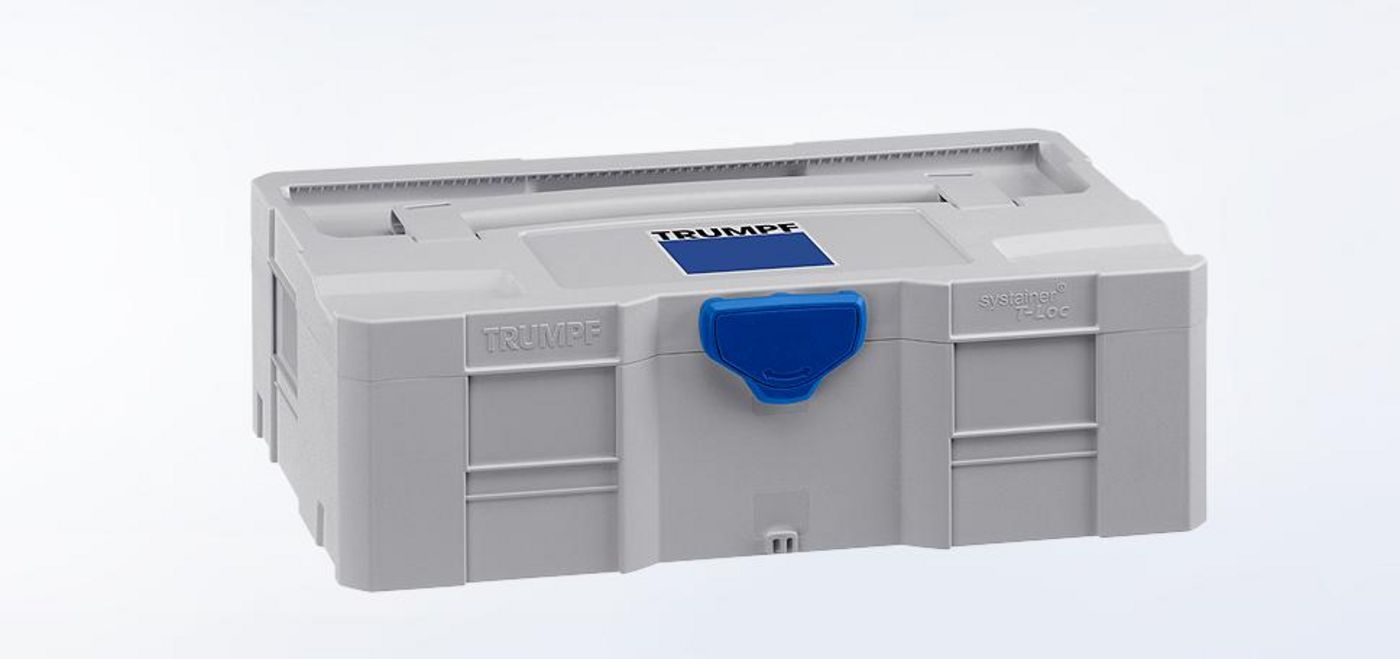

TRUMPF Box M2

TRUMPF Box M2

1 unit 1770890



















Customer benefits

Power-Head Technology

The light metal gear head’s ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.





Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on the battery life and lets you get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because they work without carbon brushes and therefore no mechanical friction occurs. The result: almost wear-free motors and hardly any maintenance.





Nibbler-corrugated-sheet-cutting

Compact and powerful

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.







Battery machine speed controller

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
