TruTool N 700

Perfect for dismantling work

With its light weight of just 22 lbs., the TruTool N 700 can cut sheet thicknesses of 0.25 in. It cuts through doubled sheets as well as bends of up to 90° and is, therefore, perfect for dismantling work. The two handles can be quickly swapped, making it easy to perform work in a wide range of situations. The compact handle is ideal for restricted spaces and the bow-handle is well-suited to all work situations.



Cutting directions
The machine can be turned through 360° in 4 steps of 90°.

Rectangular punch with flexibility for profiles
Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.

Minimal force required
You work without feed force so the required force is reduced to a minimum.

Surprisingly lightweight
Unbeatable weight-performance ratio of 22 lbs. against a sheet thickness of 0.25 in.



Kategori:

Produktbeskrivelse

Cutting directions
The machine can be turned through 360° in 4 steps of 90°.

Rectangular punch with flexibility for profiles
Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.

Minimal force required
You work without feed force so the required force is reduced to a minimum.

Surprisingly lightweight
Unbeatable weight-performance ratio of 22 lbs. against a sheet thickness of 0.25 in.



Tilleggsinformasjon

Maskintype

Nibbler

Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool N 700, Stempel Standard
Standard punch (integrated)

1 unit 2260200

TruTool N 700, Matrize 7
Die 7 (integrated)

1 unit 1884878

TruTool N 700, Bügelgriff
Bow-handle

1 unit 1279590

TruTool N 700, Kompaktgriff
Compact handle

1 unit 1279618

Zubehör Standbild
Allen key

1 unit 0067857

Zubehör Standbild
Tube of grease «G1», 0.88 oz

1 unit 0344696

Zubehör Standbild
Setting gauge

1 unit 1411767

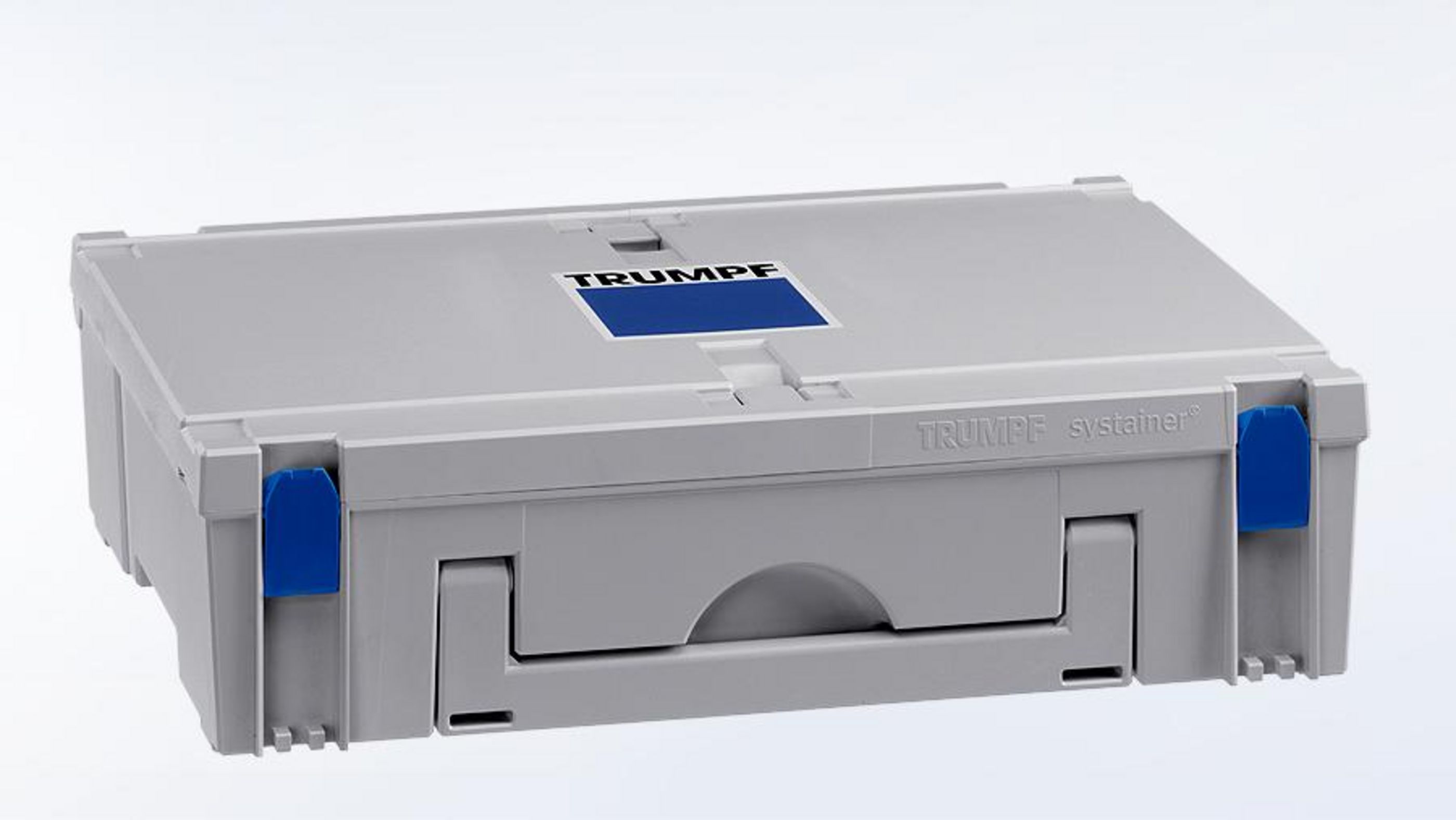

TRUMPF Box L2
TRUMPF Box L2

1 unit 1763686

Accessories

TruTool N 700, standard punch

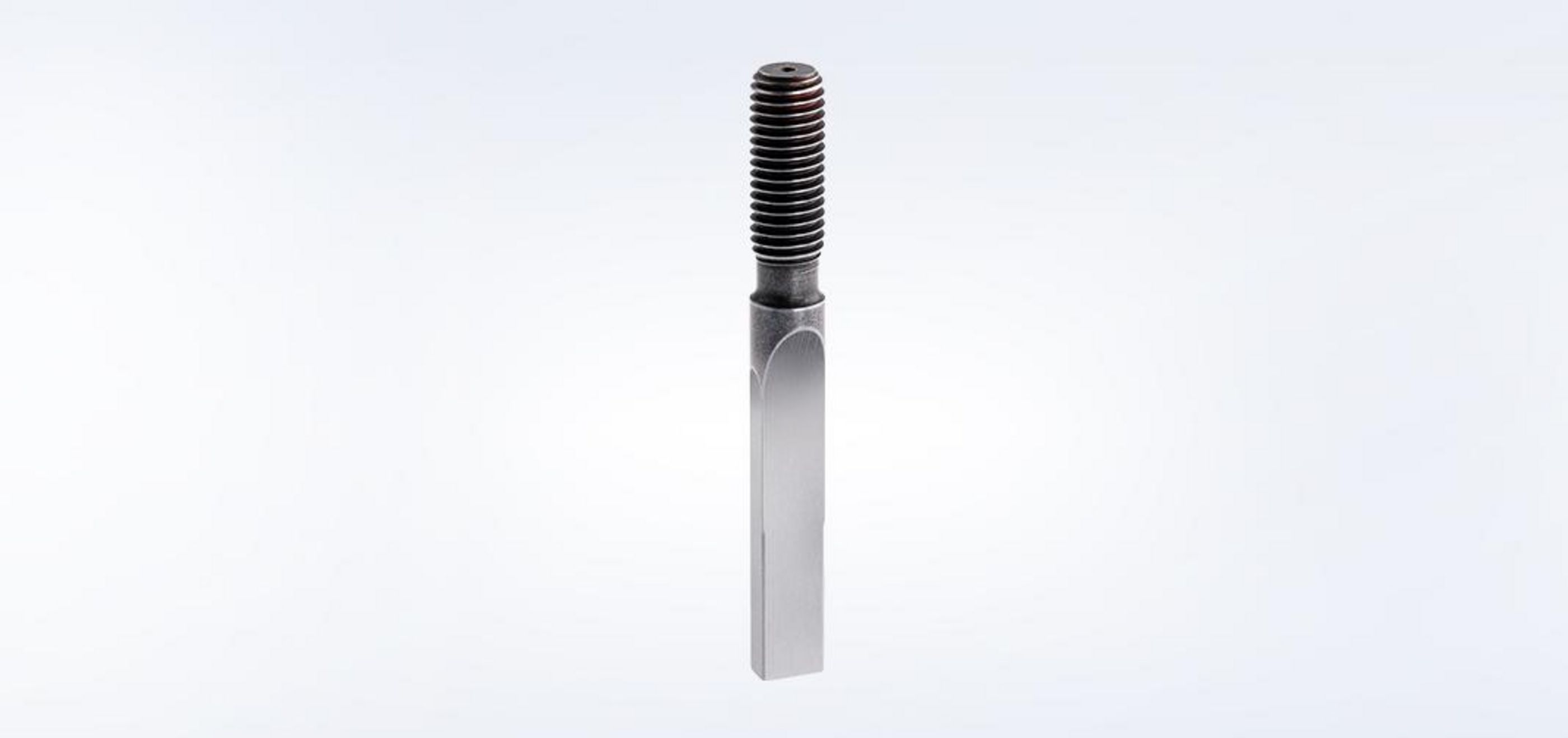

Standard punch

For processing aluminum and mild steel

1 unit 2260200
Set of 2 1264117
Set of 5 1264119
TruTool N 700, punch CR
Punch CR

For processing stainless steel

1 unit 2260201
Set of 2 1264414
Set of 5 1264415
TruTool N 700, die P7
Die P7

Well-suited for the processing of profile sheets, aluminum, and mild steel from 5 – 7 mm

1 unit 1884877
Set of 2 1264174

TruTool N 700, die No. 5

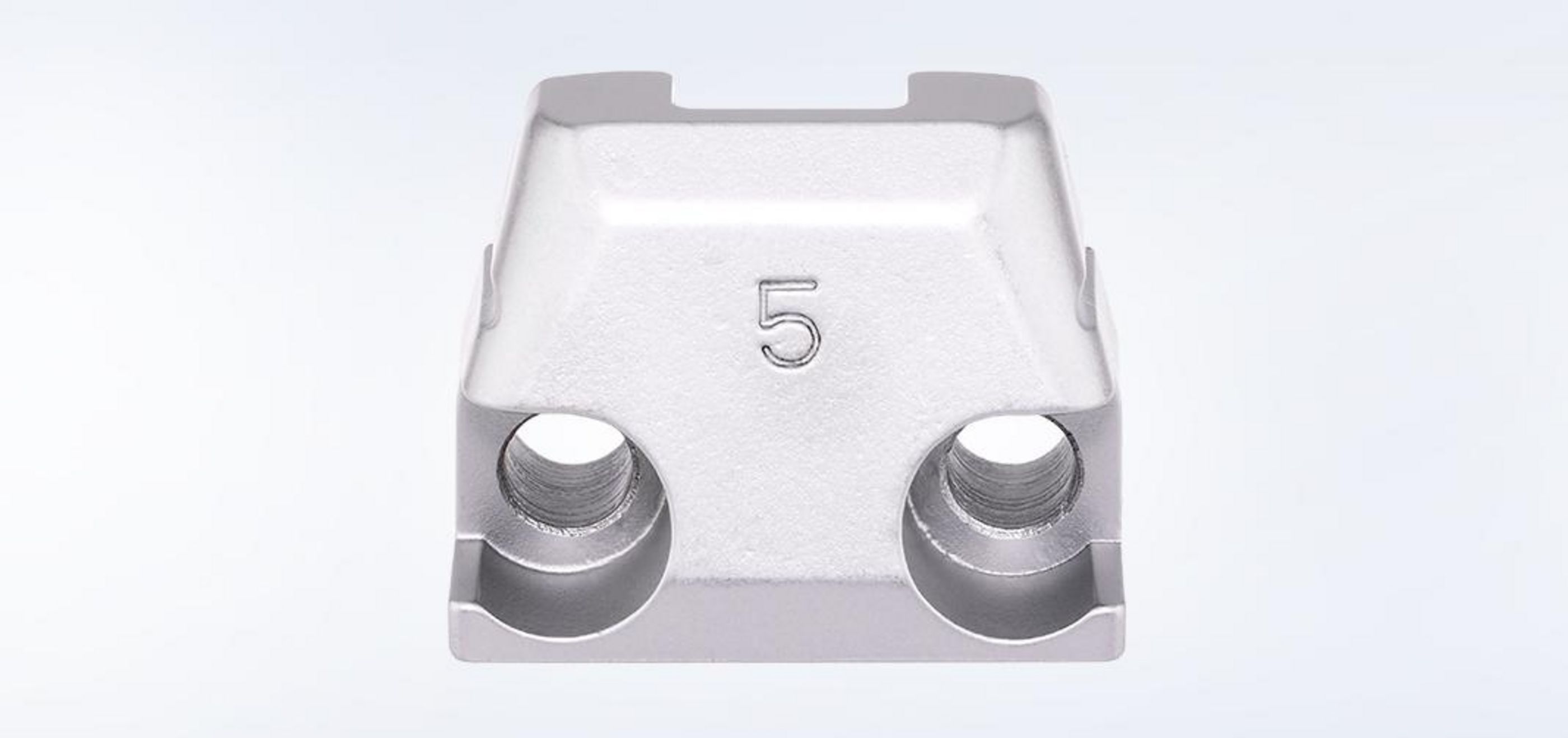

Die No. 5

For processing aluminum, mild steel, stainless steel 600 N/mm2 up to 5 mm, and stainless steel 800 N/mm2 up to 2.5 mm

1 unit 1884879
Set of 2 1264173
TruTool N 700, die No. 7
Die No. 7
For processing aluminum and mild steel from 5 – 7 mm
1 unit 1884878
Set of 2 1264137
Set of 5 1264139
TruTool N 700, wearing plate
Wearing plate

Protects the die holder against excessive wear

1 unit 2260202
Set of 2 1264373
Set of 5 1264374
TruTool N 700, punch guide

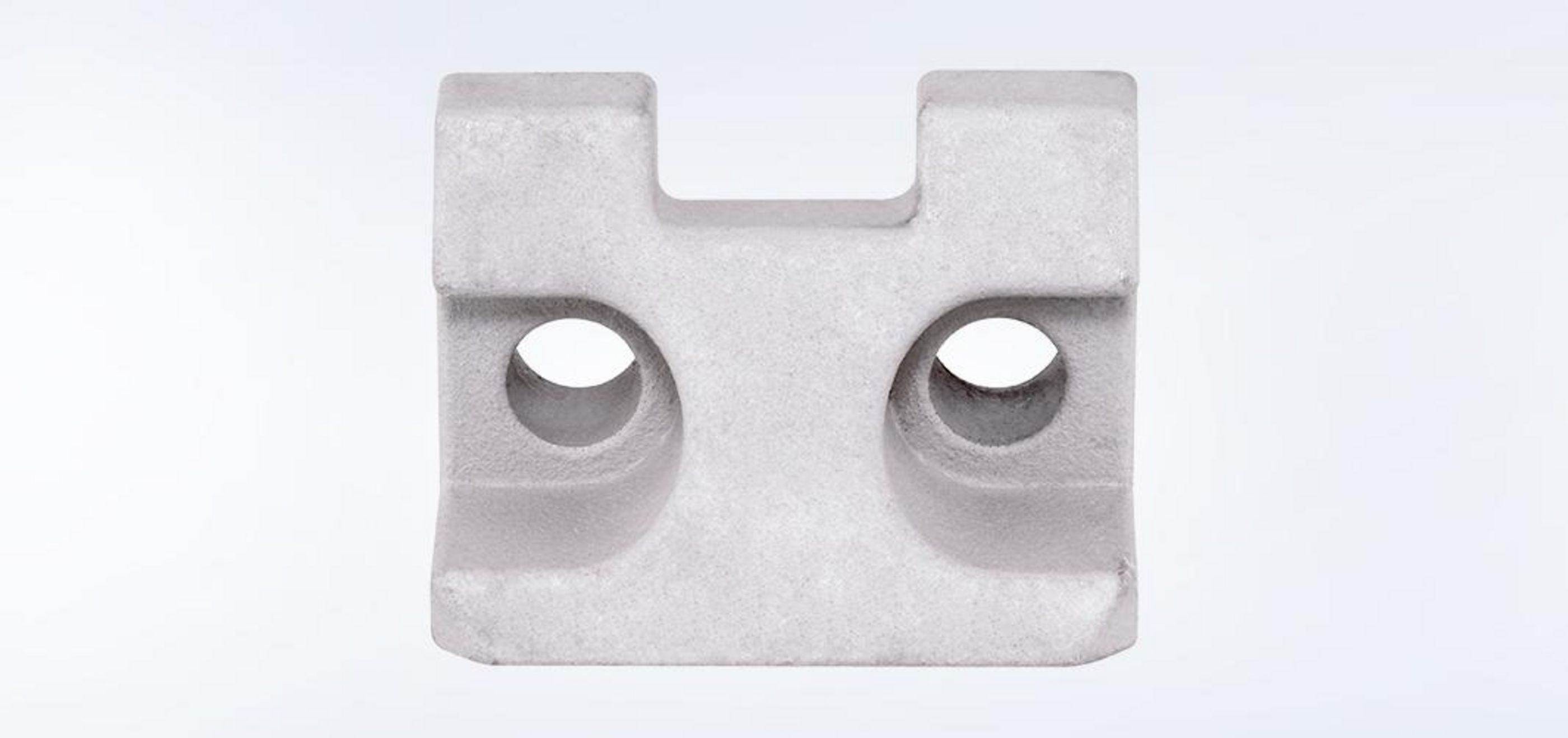

Punch guide
1 unit 2260203
Set of 2 1264366
TruTool N700, chip bag
Chip bag

To collect chips

1 unit 109275
