TruTool S 350

Adjusted in the blink of an eye

The TruTool S 350 features cutter height adjustment without the need for tools. You can adjust the height easily with a rotary knob, without an additional tool. The TruTool S 350 impresses with its ability to cut the smallest radii from 1.2 inches, resulting in high performance when cutting curves. With the TruTool S 350, you can cut mild steel with thicknesses up to 0.14 inches.





Kategori:

Produktbeskrivelse

Extremely user-friendly
The bow-handle, for one-hand and two-hand operation, ensures reliable machine control.

Adjustment without the need for tools
The cutter height adjustment enables individual adaptation to the sheet thickness.

21 feet per minute
You can progress quickly with your work. This is particularly advantageous when processing large sheets.

Long service life
The cutters each have two cutting edges and can be used either at the top or bottom.



Technical data

Scope of delivery



The following consumables and the corresponding accessories are included in the scope of delivery.



TruTool S 350/450, Messer
Cutter

Integrated

Zubehör Standbild
Allen key DIN 911-2

1 unit 0002946

Zubehör Standbild
Allen key DIN 911-5

1 unit 0067857

Zubehör Standbild
Feeler gauge

1 unit 0056856

Zubehör Standbild
Grease gun, filled with «G1»

1 unit 1369906

Zubehör Standbild
Tube of grease «G1», 0.88 oz

1 unit 0344969

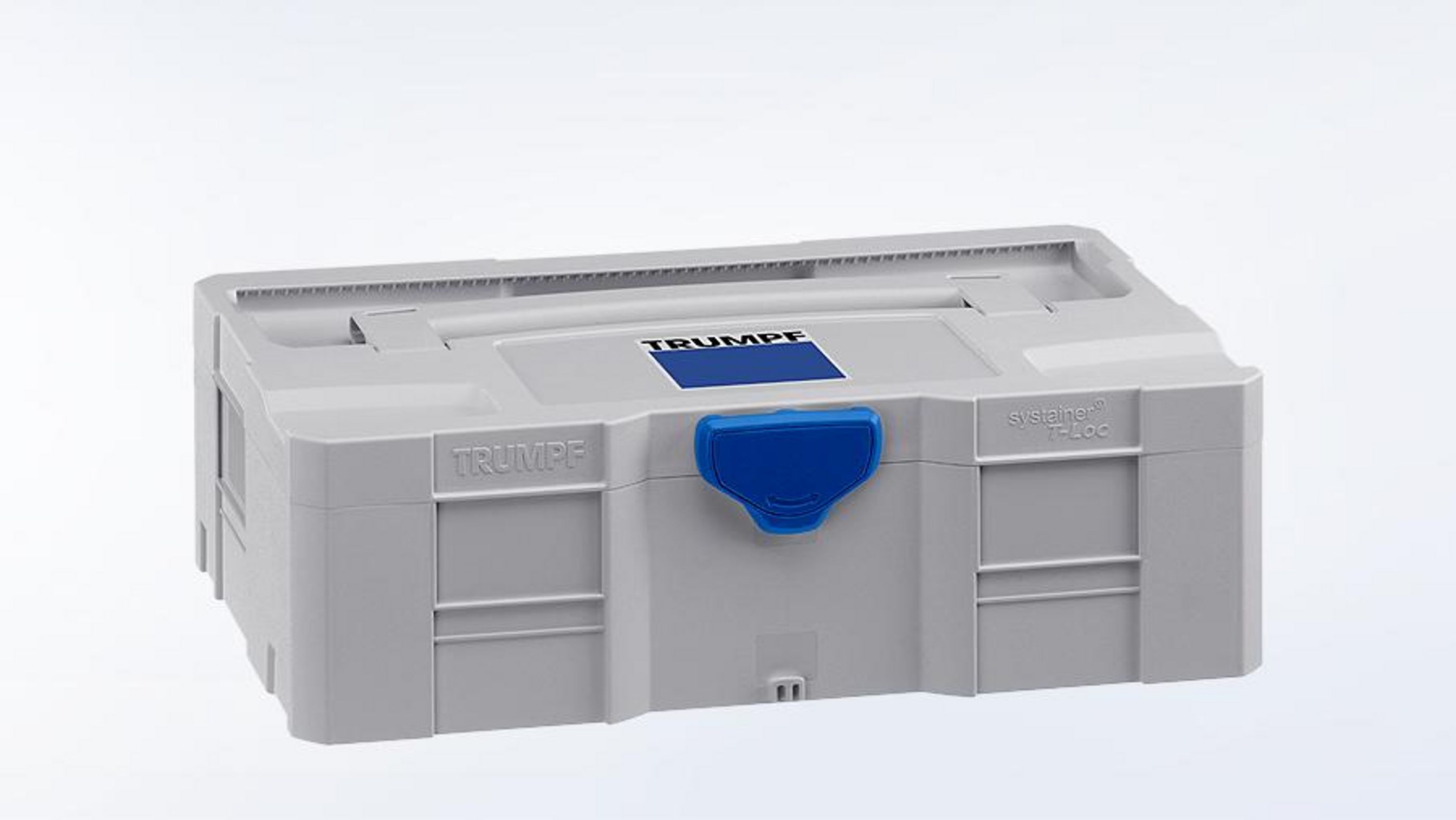

TRUMPF Box M2
TRUMPF Box M2

1 unit 1770890

Accessories

Find the right consumables and accessories for your machine here.



TruTool S 350/450, cutter
Cutter

For steel up to 400 N/mm2

Set of 2 140451
TruTool S 350/450, cutter CR
Cutter CR

For high-tensile sheets up to 800 N/mm2

Set of 2 140452
TruTool S 350/450, work station with pedestal
Work station with pedestal

For the stationary processing of small workpieces and wire grids

1 unit 918382
TruTool S 450, work station without pedestal
Workstation without pedestal

For the stationary processing of small workpieces and wire grids.

1 unit 979371
TruTool, pedestal
Pedestal

Pedestal for work station

1 unit 3677
TRUMPF Box M2
TRUMPF Box M2
1 unit 1770890

Customer benefits

TruTool S 350, height adjustment

Height adjustment without tools

The handy marking points on the rotary knob make it easy to adjust the cutters, for curves or straight cuts. The perfect setting is available for every application and sheet thickness. This facilitates sheet metal processing, enabling you to work effortlessly.



















TruTool S 350/450, cutter2-way blade rotation

You can achieve high-quality cutting results due to the secure cutter attachment. If the cutting performance decreases, you can rotate the cutter by 180° and continue the work procedure with a new cutting edge. The result is optimum cut quality, combined with a long tool life.























Electro variable speed control Optimal working speed

An easy-to-use speed controller on the motor regulates the stroke rate and adapts to the respective application. This is particularly well-suited for working with scribed lines, where radii and stainless steel are frequently processed. Reducing the stroke rate achieves the optimal torque, especially for processing sheet thicknesses from 0.16 inches. Lower speeds are recommended for cutting stainless steel. The speed controller can be used to adjust the working speed in line with the respective working situation.
