TruTool TKF 1500 with 2-speed gearbox

The powerful tool with 2 gears

The TruTool TKF 1500 is equipped with a powerful 2600 W motor and a 2-speed gearbox. This enables you to carry out individual processing adapted to the respective application. Integrated hand protection on the motor ensures a high degree of user-friendliness and provides you with safety during operation. The soft grip enables you to work with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams or tubes. The surface roughness remains low.

Kategori: Kantfasemaskin

Produktbeskrivelse

2-speed gearbox

Guarantees perfect results to match the material thickness, strength and type of workpiece.

2600 W motor

The extremely powerful motor ensures a high degree of durability.

Safe operation

Integrated hand protection on the motor provides you with a high degree of safety when working.

The right setting

It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness.

Continuously adjustable from 20° to 55°

You can use the carrier for various angles between 20° and 55°.

TruTool TKF 1500 with 2-speed gearbox, dimensional drawing

The right choice

There are five cutting tools to choose from. This enables you to achieve perfect results across a wide range of applications. The material being processed is the determining factor when it comes to choosing the right cutting tool. The cutting tools can be interchanged without the need for additional tools, and you can regrind these many times over. This results in a long service life and reduces your operating costs.

Adapted speed

The TruTool TKF 1500 is equipped with a 2-speed gearbox, thus enabling the individual processing of various materials. A reduced stroke rate is recommended for work on high-tensile materials. This ensures a high-quality welding edge

Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool TKF 1500, Stoßstahl 7°

High-tensile cutting tool (integrated)

Integrated

TruTool TKF 1500, Spänebox

Chip box

1 unit 0023209

TruTool TKF 1500, Griffsockel

Handle base

1 unit 0023229

Zubehör Standbild

Tube-shaped handle

1 unit 0023206

TruTool TKF 1500, Rollenhalter links

Roller holder complete, right

1 unit 1238982

Zubehör Standbild

Hexagon-head screw M 10 x 20 - 10.9 DIN 933

1 unit 0017302

Zubehör Standbild

Hexagon-head screw (2 units) M 10 x 25 - 10.9 DIN 933

1 unit 0079310

Wrench AL17 DIN 3113

1 unit 0078310

Allen key 6 mm

1 unit 0118860

Punching and nibbling oil for steel, 500 ml bottle

1 unit 0103387

Tube of grease "S1", 25 g

1 unit 0121486

Tube of grease "S1", 250 g

1 unit 0385478

Grease gun

1 unit 0068624

Setting gauge

1 unit 1411767

Accessories

Find the right consumables and accessories for your machine here.

Standard cutting tool

Cutting tool

For processing mild steel between 300 and 500 N/mm2

Set of 2 1263021

Set of 10 1263029

TruTool-TKF_1100_1101_2000_cutting_tool_aluminium

Aluminium cutting tool

For processing aluminium between 200 and 400 N/mm2

Set of 2 1264419

TruTool-TKF_1100_1101_2000_cutting_tool_aluminium

High-tensile cutting tool

For processing mild steel between 500 and 700 N/mm2

Set of 2 1264417

Set of 10 1264418

TruTool-TKF_1100_1101_1500_cutting_tool_CR_5575

High-tensile cutting tool 5575

For processing mild steel between 600 and 800 N/mm2

Set of 2 1327480

Set of 10 1327482

TruTool-TKF_1100_1101_1500_cutting_tool_ST_High-performance_CR

Heavy-duty cutting tool

For processing mild steel between 700 and 900 N/mm2

Set of 2 1264420

Set of 10 1264432

TruTool TKF 1500, sliding sleeve

Sliding sleeve

1 unit 1884873

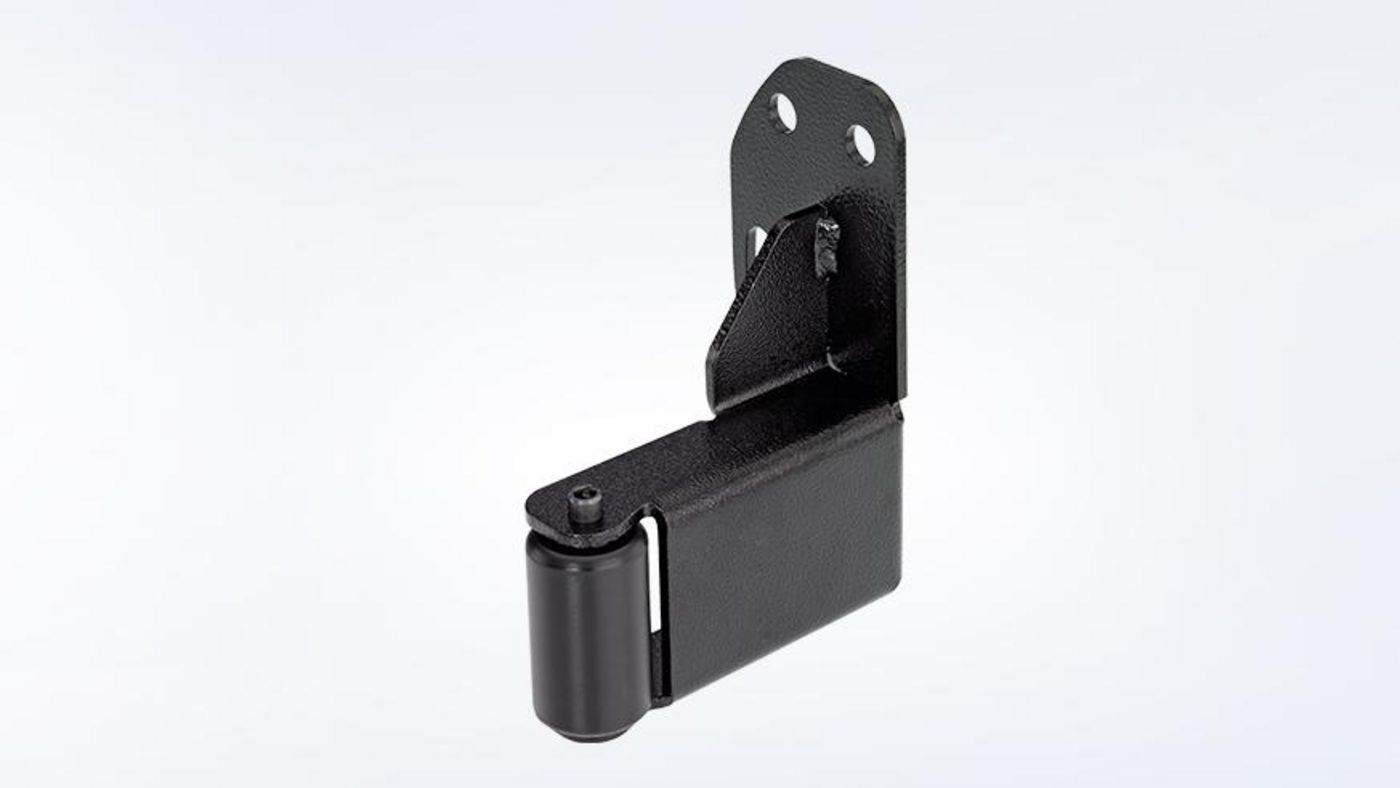

TruTool TKF 1500, left roller holder

Left roller holder

1 unit 1240848

TruTool TKF 1500, handle

Handle

Enables fatigue-free work with maximum movement

1 unit 23210

TruTool TKF 1500, modification kit 40 - 80 mm

Modification kit 40 - 80 mm

Modification kit for greater workpiece thicknesses of 40 - 80 mm

1 unit 23203

TruTool TKF 1500, modification kit 80 - 120 mm

Modification kit 80 - 120 mm

Modification kit for larger workpiece thicknesses 80 - 120 mm

1 unit 23204

TruTool TKF 1500, modification kit 120 - 160 mm

Modification kit 120 - 160 mm

Modification kit for greater workpiece thicknesses of 120 - 160 mm

1 unit 27799

TruTool TKF 1500, tube processing roller holder

Tube processing roller holder

For tube external machining Ø 90 - 200 mm with stripper

1 unit 5123

TruTool TKF 1500, stripper

Stripper

For an angle of bevel between 20° and 45°. For special part no. 0027798 for tube processing.

1 unit 23242

TruTool TKF 1500, 55° special-purpose stripper

55° special-purpose stripper

For an angle of bevel between 20° and 55°

1 unit 32119

TruTool TKF 1100 / 1101, work station with pedestal

Work station with pedestal

Ideal for processing small parts in stationary use. For TruTool TKF 2000, order the adapter 1653155 separately.

1 unit 5079

TruTool TKF 1500 / 2000, work station

Work station TKF1500/2000

Ideal for processing small parts in stationary use. For TruTool TKF 2000, the adapter 1653155 must be ordered separately.

1 unit 1343474

TruTool, pedestal

Pedestal

Pedestal for work station

1 unit 3677

Still image of accessories

Punching and nibbling oil for steel

500 ml bottle 103387

Still image of accessories

Punching and nibbling oil for aluminium

1000 ml bottle 125874

Case

Case

1 unit 121585
