TruTool TKF 700

Small and handy

With the TruTool TKF 700, you can achieve chamfer lengths of up to 7 mm on straight sheets as well as on tubes. The quick-adjustment mechanism makes it easy to change the carrier and cutting direction. The TruTool TKF 700 is the lightest model in its class. The machine can be easily guided manually in a vertical, horizontal or upside-down position, or can be used stationary in a work station. The round handle ensures comfortable operation



Kategori:

Produktbeskrivelse

Lightweight
At just 5.4 kg, the TruTool TKF 700 is the lightest and smallest model.

The right setting
The chamfer height and sheet thickness can be easily adjusted without tools.

Ideal for limited spatial conditions
You can rotate the cutting direction by 90° to the right or left.

30°, 37.5° or 45°
You can choose between three carriers for individual angles of bevel.













TruTool TKF 700, dimensional drawing













The right choice

The TruTool TKF 700 has two different cutters to choose from, which you can select and use depending on the strength of the sheets. The standard cutter is excellent for processing aluminium and mild steel up to 400 N/mm2. The high-tensile cutter is ideal for processing high-tensile materials from 600 N/mm2 to 800 N/mm2





For small parts

The TruTool TKF 700 is ideal for processing small workpieces. For this purpose, use the machine stationary in the work station.







Technical data

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool TKF 700, Messer Standard
Standard cutter (integrated)
Integrated
TruTool TKF 700, Handgriff
Handle
1 unit 0131063
Zubehör Standbild
TORX T 25 hexagonal bar wrench
1 unit 0131549
Zubehör Standbild
Allen key DIN 911-5
1 unit 0067857
Allen key DIN 911-4
1 unit 0067857
Zubehör Standbild
Grease gun (filled with "G1") 70 g
1 unit 1369906

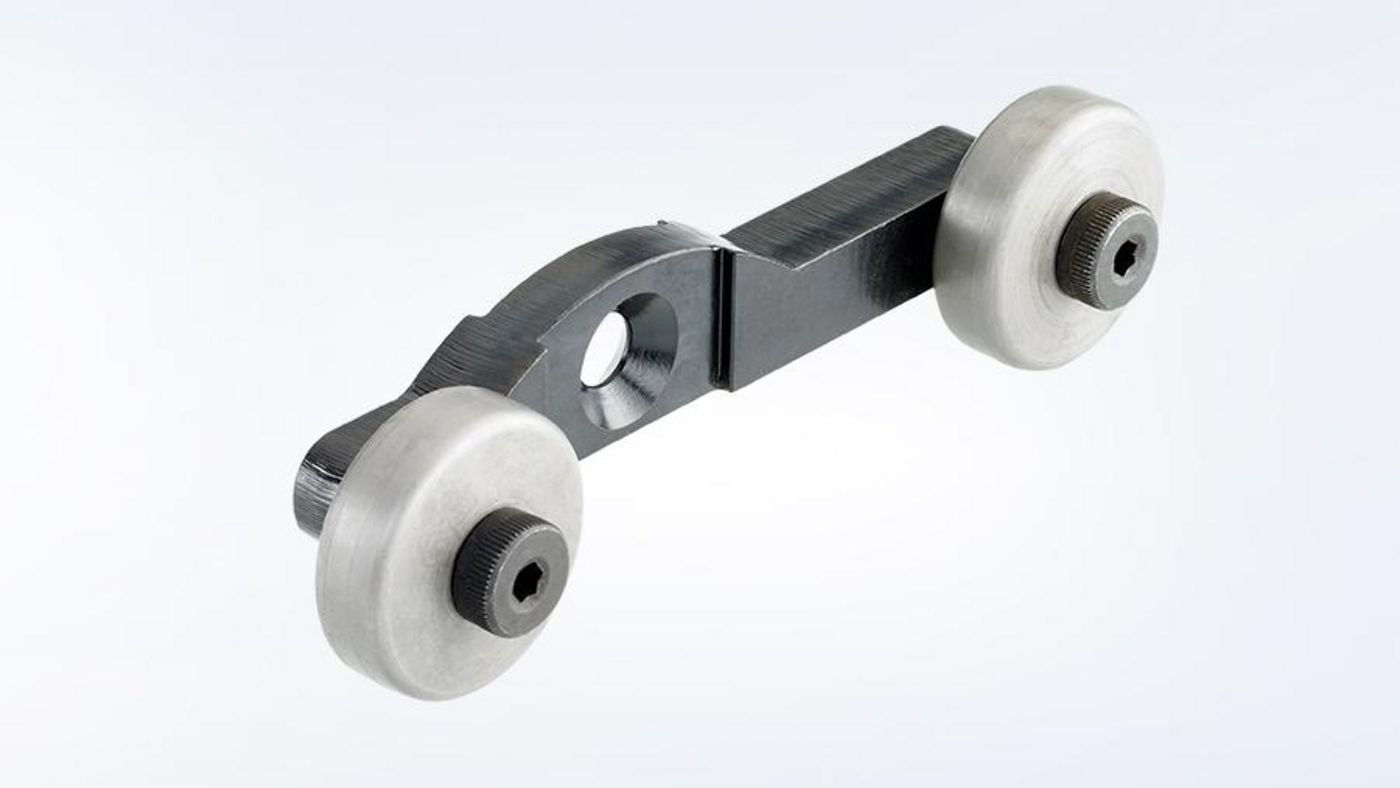

TruTool TKF 700, Rollenhalter komplett
Roller holder complete
1 unit 0130868

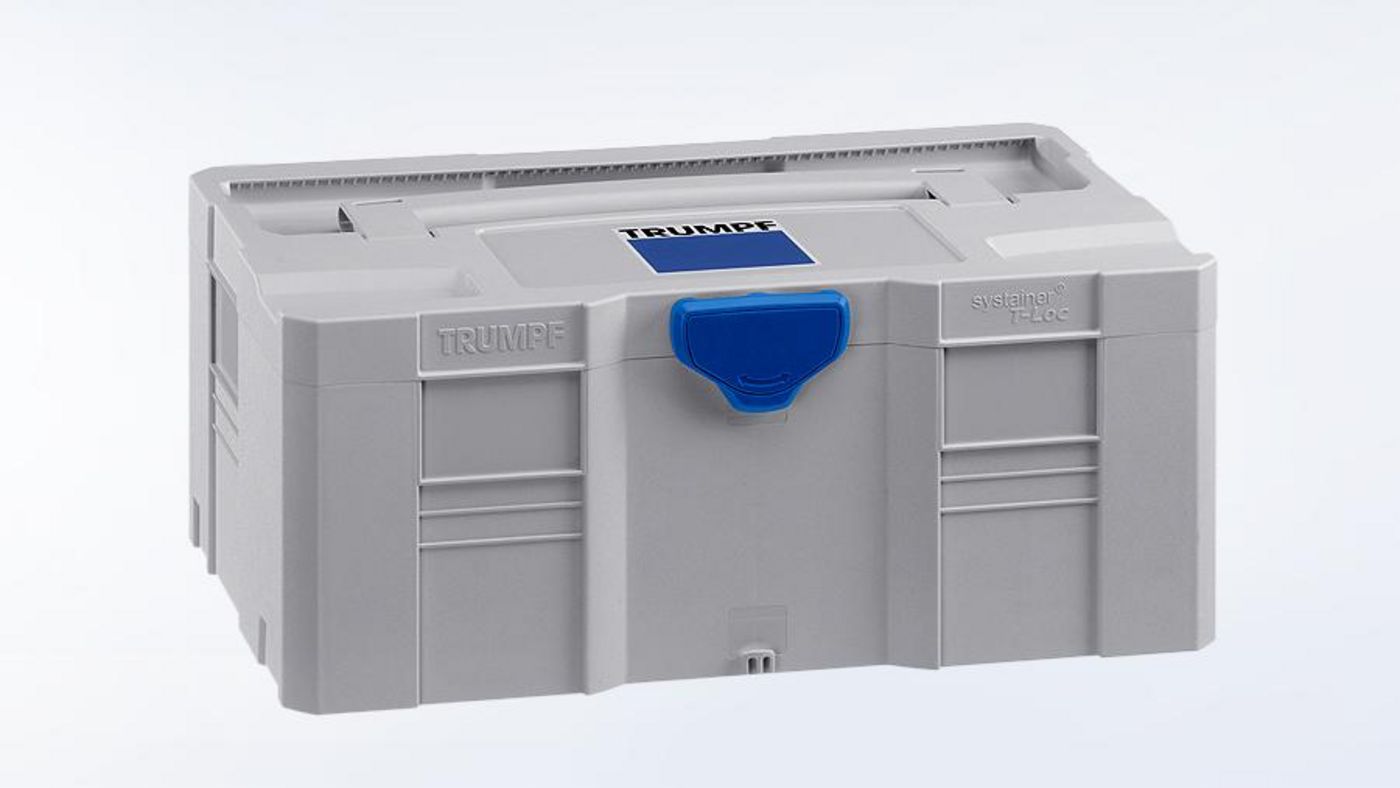

TRUMPF Box M3
TRUMPF Box M3
1 unit 1770951


Accessories

Find the right consumables and accessories for your machine here

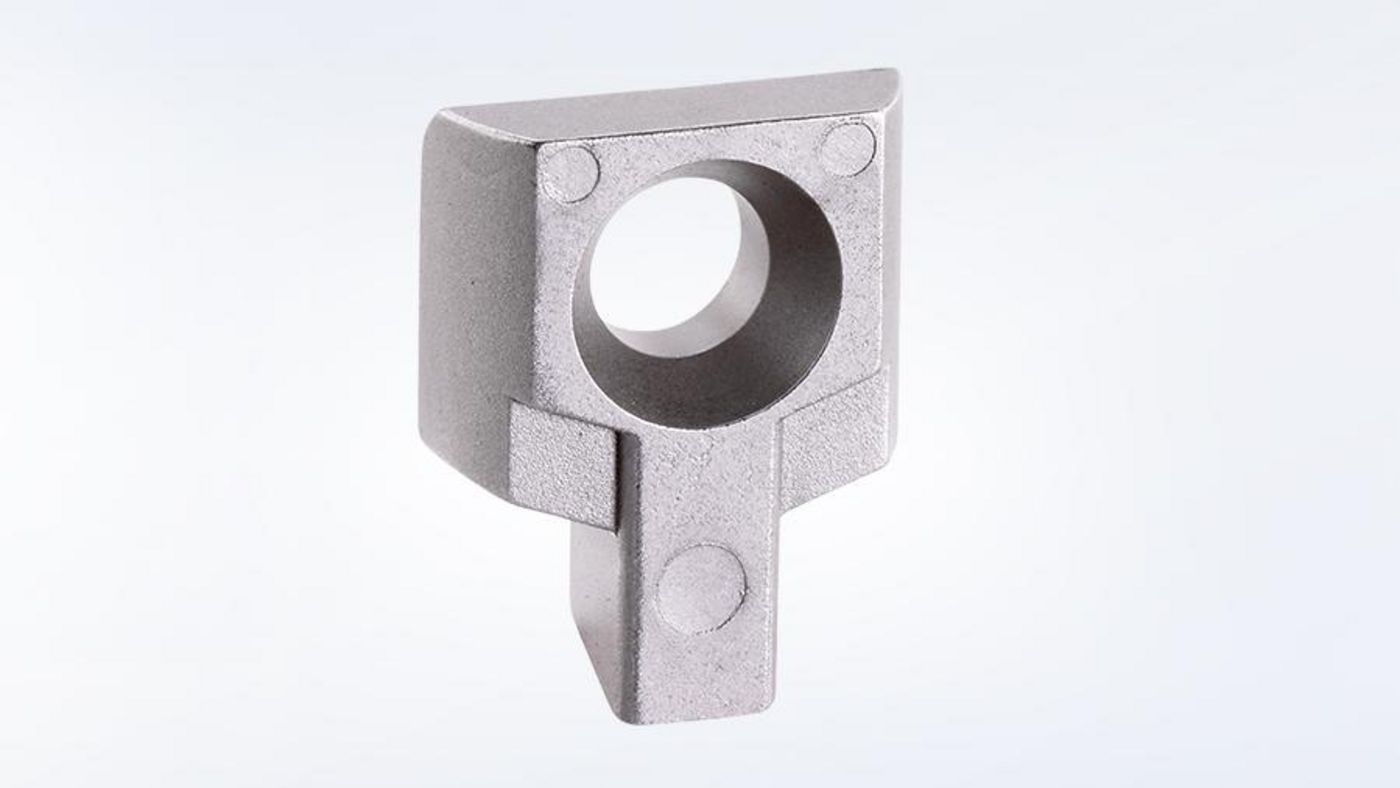

TruTool TKF 700, standard cutter
Standard cutter
For processing aluminium and mild steel up to 400 N/mm2
Set of 5 1264353

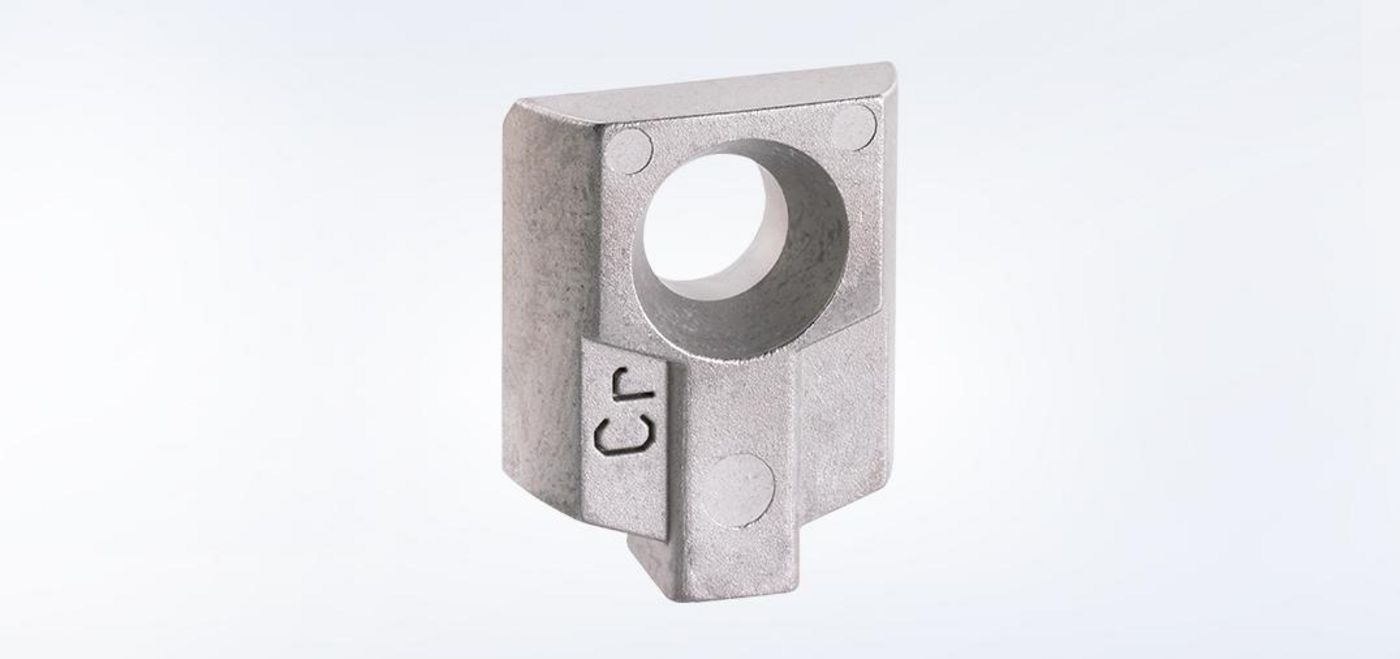

TruTool TKF 700, cutter CR
High-tensile cutter
For processing chromium steel of 600 - 800 N/mm2
Set of 5 1264400
TruTool TKF700, standard cutter
Set
2 x cutter and 1 x countersunk screw
Set 132371
TruTool TKF700, high-tensile cutter
High-tensile set
2 x high-tensile cutter and 1 x countersunk screw
Set 132740
TruTool TKF 700, work station
Work station
Ideal for processing small parts in stationary use
1 unit 977764
Still image of accessories
Punching and nibbling oil for aluminium
1000 ml bottle 125874
TruTool TKF 700, 30° lower blank holder
30° lower blank holder
Well-suited for 30° carrier
1 unit 134609
TruTool TKF700, lower blank holder
37.5° lower blank holder
Well-suited for 37.5° carrier
1 unit 259379
TruTool TKF700, lower blank holder
45° lower blank holder
Well-suited for 45° carrier
1 unit 977765
TruTool TKF 700, 30° carrier
30° carrier
With an angle of bevel of 30°
1 unit 977770
TruTool TKF 700, 37.5° carrier
37.5° carrier
With an angle of bevel of 37.5°
1 unit 977769
TruTool TKF 700, 45° carrier
45° carrier
With an angle of bevel of 45°
1 unit 977767
Still image of accessories
Punching and nibbling oil for steel
500 ml bottle 103387
TRUMPF Box M3
TRUMPF Box M3
1 unit 1770951
