TruTool PN 200 18V LiHD rechargeable battery

Independent and powerful for medium profile depths

For the first time, you can use battery machines cordlessly to cut sheet thicknesses in mild steel up to 2 mm, even in the case of doubled sheets. The machine has a short tool and is specially designed for trapezoidal sheets with medium profile depths and C-L-U profiles. The machine can be turned on the spot by 360°. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can choose from various tool depths to broaden the areas of application. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes. It is worth mentioning that the machine is available as a set with a long and short tool.



v

Produktbeskrivelse

Cordless Alliance System
Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.
Brushless motor
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.
Machine with short tool
For processing profile depths of up to 3.4 inches and C, L, and U profiles. It is also well-suited for corrugated sheet.
Ideal for hard-to-reach places
You can adjust the working direction through 360° in steps of 45° easily, without the need for tools.



Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. The world’s most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. The cells are protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack’s outer rubber coating also provides secure and non-slip stability as well as impact protection.

Can be retrofitted for flexible work

The rechargeable battery and electric variants of the TruTool N 200, PN 200 and PN 201 are built on the same multifunctional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 85 mm deep and C, L and U profiles; and TruTool PN 201 for trapezoidal sheets up to 162 mm deep.





Technical data

  https://www.pantronic.no/wp-content/uploads/2021/05/TRUMPF-technical-data-sheet-TruTool-PN-200-18V-LiHD-rechargeable-battery.pdf

Scope of delivery

The following consumables and the corresponding accessories are included in the scope of delivery.



Standard punch (integrated)

1 unit 2260206

Standard die (integrated)

1 unit 2260207



Punch guide (integrated)

1 unit 1884927


Tool PN 200 (integrated)

1 unit 1750693


Wearing plate (integrated)

1 unit 2260208


1 hexagonal bar wrench T x 20

1 unit 0359907

Akku 18V LiHD
18V LiHD 4 Ah rechargeable battery (2 units)
1 unti 2598811

Charger 18 V
12V-36V recharger LG
1 unit, DE/CH version: 2569784



TRUMPF Box M2

1 unit 1770890

Accessories

Find the right consumables and accessories for your machine here.


TruTool PN 200 / 201, standard punch
Standard punch
1 unit 2260206
Set of 2 2260376
Set of 5 1315713
TruTool PN 200 / 201, standard die
Standard die
1 unit 2260207
Set of 2 1264153
Set of 5 1264154
TruTool PN 200 / 201, die P1
Die P1
Thin-sheet die up to sheet thickness 1 mm
1 unit 2260209
TruTool PN 200 / 201, wearing plate
Wearing plate
Protects the die holder against excessive wear
1 unit 2260208
Set of 2 1429275
Set of 5 1429276
TruTool PN 200 / 201, punch guide
Punch guide
1 unit 1884927
Set of 2 1264367
TruTool N 200, tool
Tool TruTool N 200
1 unit 1750694
TruTool N 200, tool
Tool TruTool PN 200
1 unit 1750693
TruTool PN 201, tool
Tool TruTool PN 201
1 unit 1750692
Punch, die and wearing plate set
Set
2 x punch, 1 x die and 2 x wearing plate
Set of 1 1429289
Still image of accessories
Punching and nibbling oil for steel
500 ml bottle 103387
Still image of accessories
Punching and nibbling oil for aluminium
1000 ml bottle 125874
18V LiHD 4.0Ah rechargeable battery
18V LIHD 4.0AH RECHARGEABLE BATTERY

1 unit 2598811
LG 12V-36V recharger
LG 12V-36V RECHARGER
For 12V and 18V LiHD rechargeable battery
1 unit (DE/CH) 2569784
18V starter kit
18V STARTER KIT
1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery
1 Set (DE) 2598816
TRUMPF Box M2
TRUMPF Box M2
1 unit 1770890

Customer benefits

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.


Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.



Compact, lightweight and compatible

The 18 V battery machine has a compact and light design and allows fatigue-free work. The soft grip ensures safe and low-vibration working. You can combine the 18 V Li-ion rechargeable batteries with all current TRUMPF battery machines and the recharger in their voltage class. The Li-ion battery machines are also available as solo machines.

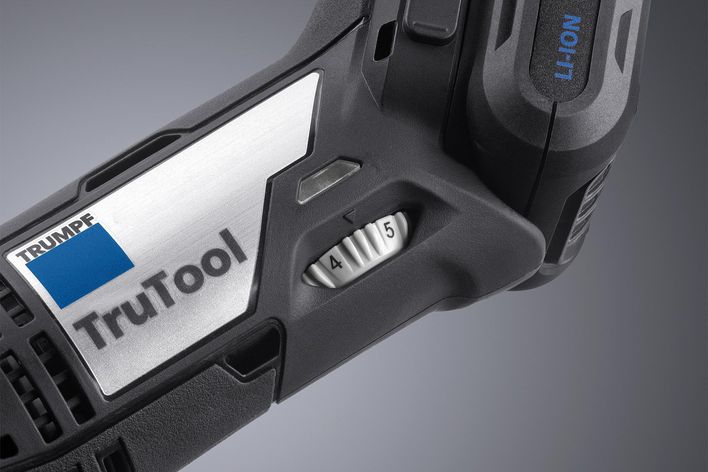

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
